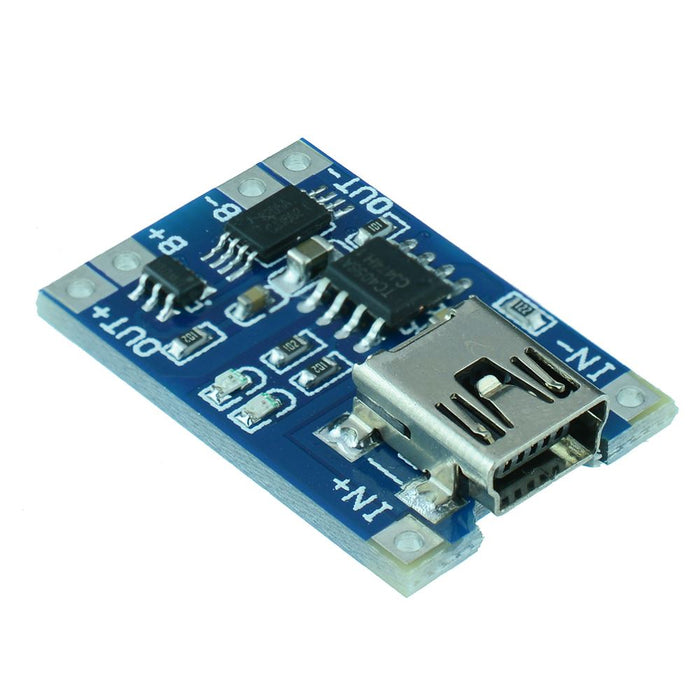

5V 1A Li-Battery Mini USB Charger + Protection Board Module

SKU 552436

MPN: 552436

100 in stock
Original price £1.03 - Original price £1.03
Original price
£1.03 Inc VAT
£1.03 - £1.03
Current price £1.03 Inc VAT
Charger module suitable for charging 3.7V lithium polymer batteries using either a Mini USB connector or 5V power supply directly to the module.  It uses the TP4056 controller and standard configuration with a 1A charge current.  The module features two LEDs, one LED will be illuminated whilst it is charging, and flash when no battery is connected. The second LED will illuminated when no battery is connected or when charging is finished.

  • Supports LiCoO2 (3.6/3.7V) and LiMn (3.6/3.7V) batteries
  • Input voltage: 4.5 to 5.5V
  • Charge voltage: 4.2V
  • Charging controller: TP4056
  • Charger type: linear
  • Dimensions: 22 x 16mm
  • Specification
