5mm Cylindrical Reed Switch SPST-NO 500mA 140V - S1372

by Comus
SKU 552580

MPN: S1372

Out of stock
Sold out
Original price £6.95 - Original price £6.95
Original price
£6.95 Inc VAT
£6.95 - £6.95
Current price £6.95 Inc VAT

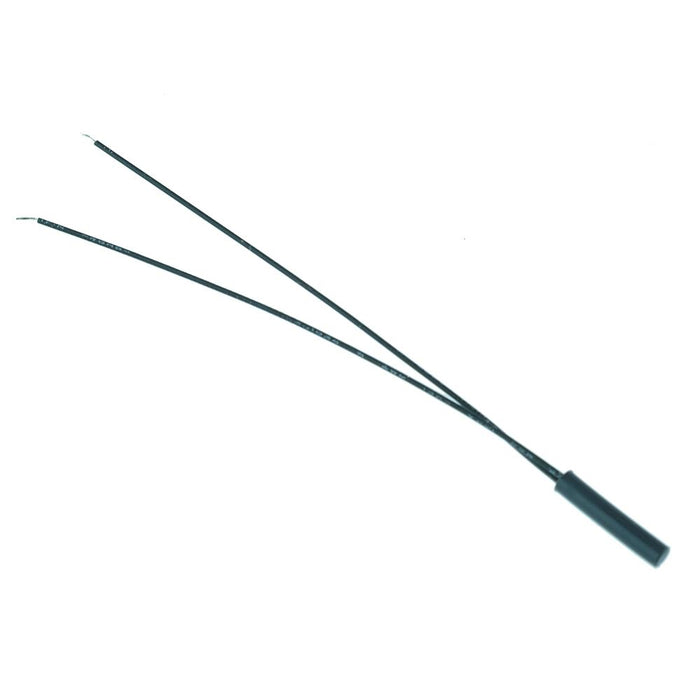

The S1372 is a cylindrical reed switch featuring normally open contacts and a polypropylene case. Suitable for position or limit sensing applications.

  • Suggested magnet: PRM
  • Normally open contacts
  • Maximum switching voltage: 140VAC
  • Maximum switching current: 0.5A
  • Maximum switching capacity: 10VA
  • Switching distance: 3mm Min
  • 2 x round 0.22mm² PVC insulated wire
  • Specification
    Back order lead time 180 Days
    Contact configuration SPST-NO
    Diameter 3.5mm
    Material Polypropylene
    Maximum switching capacity 10VA
    Maximum switching current 0.5A
    Maximum switching voltage 140VAC
    Operating temperature -20°C to +85°C
