5mm Cylindrical Reed Switch SPST-NO 250mA 100V - S1369

by Comus
SKU 552578

MPN: S1369

21 in stock
Original price £4.06 - Original price £4.06
Original price
£4.06 Inc VAT
£4.06 - £4.06
Current price £4.06 Inc VAT

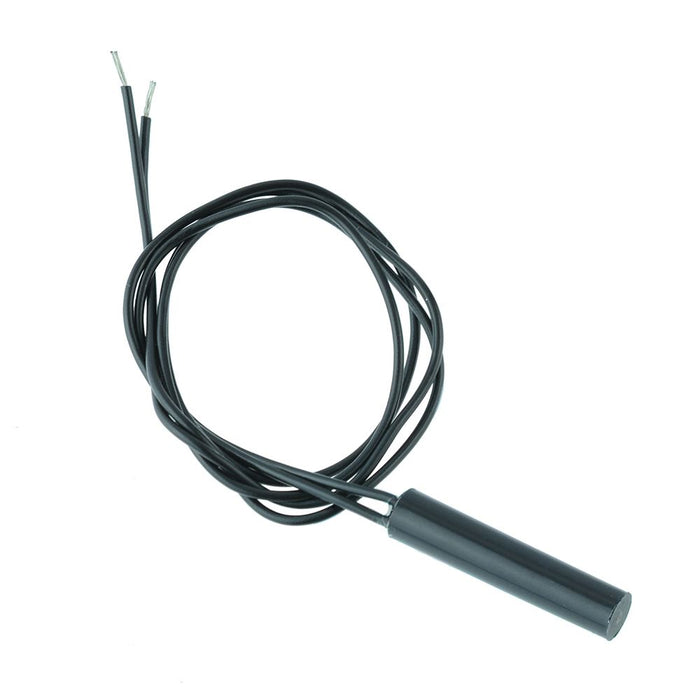

The S1369 is a cylindrical reed switch featuring normally open contacts and a polypropylene case. Suitable for position or limit sensing applications.

  • Suggested magnet: PRM
  • Normally open contacts
  • Maximum switching voltage: 100VAC
  • Maximum switching current: 0.25A
  • Maximum switching capacity: 5VA
  • Switching distance: 5mm Min
  • 2 x round 0.22mm² PVC insulated wire
  • Specification
    Back order lead time 180 Days
    Contact configuration SPST-NO
    Material Black Polypropylene
    Maximum switching capacity 5VA
    Maximum switching current 0.25A
    Maximum switching voltage 100VAC
    Operating temperature -20°C to +70°C
