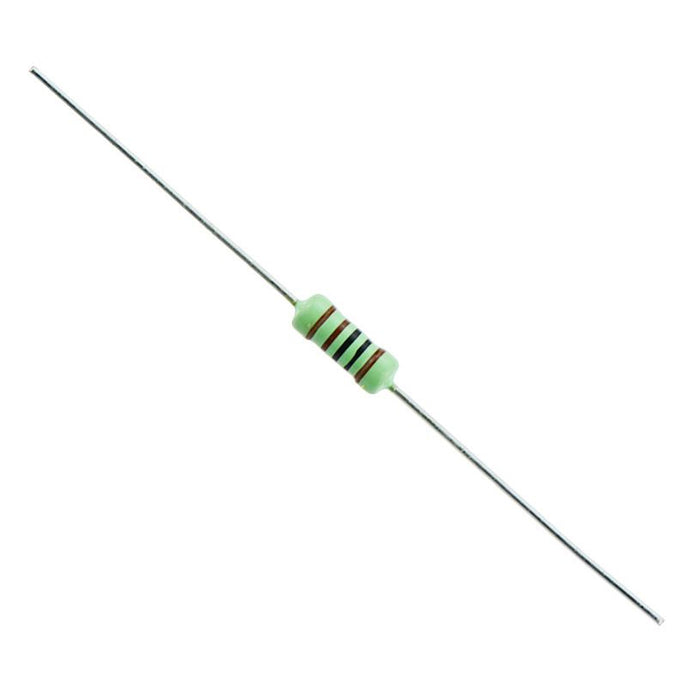

5k6 Metal Film 1W Resistor 1%

SKU 400354

MPN:

Availability:
916 in stock
Original price £0.09 - Original price £0.09
Original price
£0.09
£0.09 - £0.09
Current price £0.09
High stability 1W resistors with 1% tolerance and epoxy coating suitable for industrial and consumer electronics applications.

  • Power rating: 1W
  • Tolerance: 1%
  • Body dimensions: 11 x 4.5mm (Length x Diameter)
  • Lead diameter: 0.75mm
  • Supplied on tape packaging
  • Specification
    Back Order Lead Time 45 Days
    Body Dimensions 11.0 x 4.5mm (Length x Diameter)
    Lead Diameter 0.75mm
    Maximum Operating Voltage 500V
    MOQ 10
    mpn 400354
    Operating Temperature -55°C to +155°C
    Packaging Cut Tape
    Power Rating 1W
    Resistance 5.6KΩ
    Temperature Coefficient ±100ppm/°C
    Termination Axial
    Tolerance ±1%
