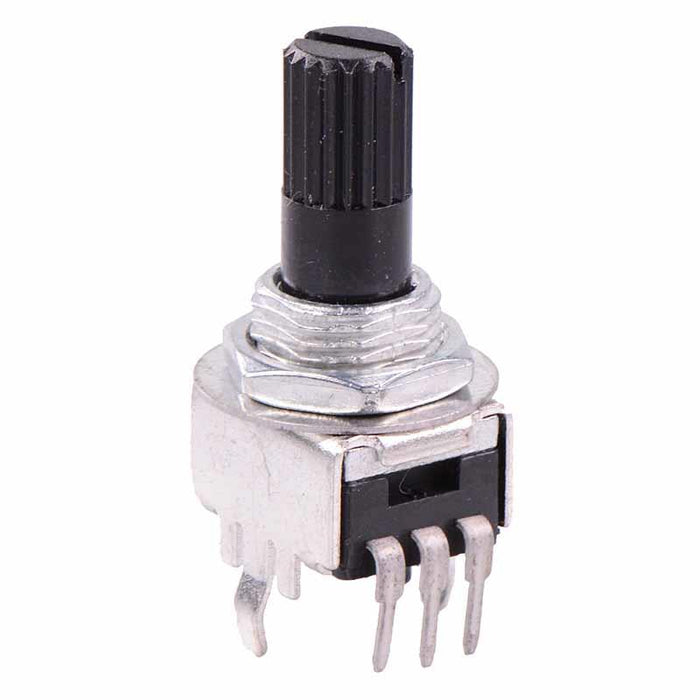

5K Linear 9mm Potentiometer Knurled 6mm Shaft

SKU 482348

MPN: 482348

Availability:
763 in stock
Original price £0.44 - Original price £0.44
Original price
£0.44
£0.44 - £0.44
Current price £0.44
5K linear 9mm potentiometer featuring an insulated 6mm splined shaft and snap-in clip. The potentiometers are suitable for PCB or panel mount applications including use with communications equipment, consumer goods, portable electronics, commercial appliances and sound equipment.

  • Insulated 6mm splined shaft
  • Snap-in clip
  • 9mm panel cut-out
  • ±20% tolerance
  • 25mm shaft length
  • 0.05W power rating
  • 50V AC / 20V DC maximum operating voltage
  • Specification
    Back Order Lead Time 45 Days
    Maximum Voltage 50VAC / 20VDC
    Mounting Hole Diameter 9mm
    Mounting Type PCB
    Operating Temperature -10°C to +70°C
    Pitch 2.5mm
    Power Rating 0.05W
    Resistance 5KΩ
    Shaft Diameter 6mm
    Taper Linear
    Termination Type Pin
    Tolerance ±20%
    Total Rotation 280°
