5K 16mm Logarithmic Splined Potentiometer
SKU 133010
MPN: 133010
Availability:
501 in stock
Original price
£0.53
-
Original price
£0.53
Original price
£0.53
£0.53
-
£0.53
Current price
£0.53

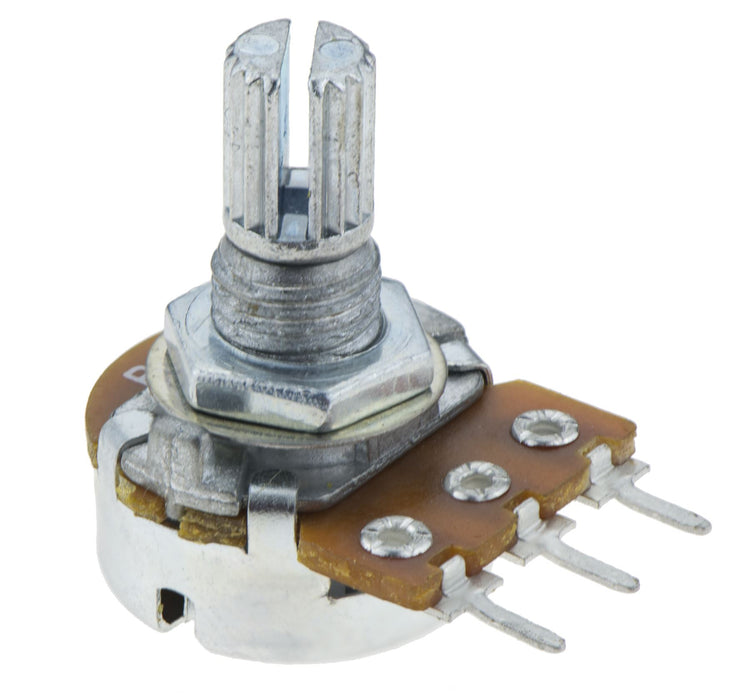

16mm potentiometers with a splined 6mm shaft suitable for PCB mounting.

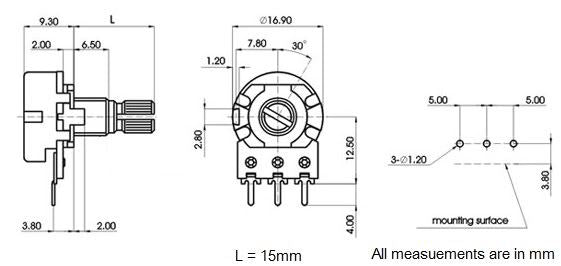

5K logarithmic Standard 16mm diameter size 20% tolerance Panel cut-out: 7mm 5mm pitch 15mm shaft length
Specification
| Back Order Lead Time | 45 Days |
| Dimensions | 17mm Diameter |
| Maximum Voltage | 150V |
| Mounting Hole Diameter | 7mm |
| Mounting Type | Panel Mount |
| Operating Temperature | -25°C to +70°C |
| Pitch | 5mm |
| Power Rating | 0.063W |
| Resistance | 5KΩ |
| Shaft Diameter | 6mm |
| Taper | Logarithmic |
| Termination Type | Pin |
| Tolerance | ±20% |
| Total Rotation | 300° |
