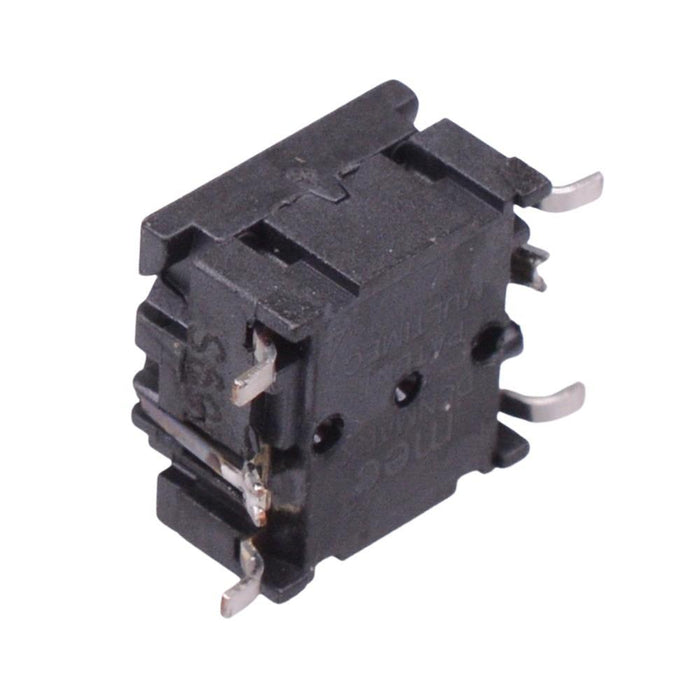

5GSH93582 MEC Red LED High Performance Tactile Switch Surface Mount PCB SPST-NO
by MEC
SKU 489873
MPN: 5GSH93582
Availability:
200 in stock
Original price
£2.22
-
Original price
£2.22
Original price
£2.22
Inc VAT
£2.22
-
£2.22
Current price
£2.22
Inc VAT
The 5GSH93582 is a high performance illuminated tactile switch manufactured by MEC, featuring NO silver contacts and IP67 sealing. The switches are part of the Multimec 5G series which utilise a large diameter snap-on cap retention system and actuator levelled with the switch body. The robust design of the switches make them suitable for a wide range of commerical and industrial applications.
10 x 10mm package Height: 8.5mm Momentary NO contacts Red LED 2V 25mA IP67 protection level Surface mount Actuation force: 3.5N Terminal pitch: 14.0 x 7.62mm Compatible caps: 1A, 1B, 1DS, 1ES, 1FS, 1GAS, 1GCS, 1H, 1IS, 1JS, 1KS, 1KBS, 1KCS, 1LS, 1M, 1NS, 1PS, 1QS, 1RS, 1SS, 1TS, 1US, 1VS, 1WAS, 1WDS, 1WPS, 1XS, 1ZA, 1ZB, 1ZCS, 1Z, 1ZW, 10R, 10RF, 10RM, 10Q, 10QM, 10C and Aquamec
Specification
| Actuation | Momentary |
| Colour | Red |
| Contact configuration | SPST |
| Contact material | Silver |
| Contact rating | 50mA 24VDC |
| Current rating | 50mA |
| Height | 8.5mm |
| Illumination colour | Red |
| Illumination voltage | 2V |
| Moq | 1 |
| Mounting style | PCB |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating force | 3.5N |
| Operating temperature | -30°C to +85°C |
| Pitch | 14.00 x 7.62mm |
| Product series | Multimec 5G |
| Protection level | IP67 |
| Switch operation | Off-(On) |
| Terminal type | Surface Mount |
| Voltage rating | 24VDC |
