5A Rocker Switch Circuit Breaker M105B1BR3

by Techna
SKU 485216

MPN: M105B1BR3

Availability:
9 in stock
Original price £7.66 - Original price £7.66
Original price
£7.66 Inc VAT
£7.66 - £7.66
Current price £7.66 Inc VAT

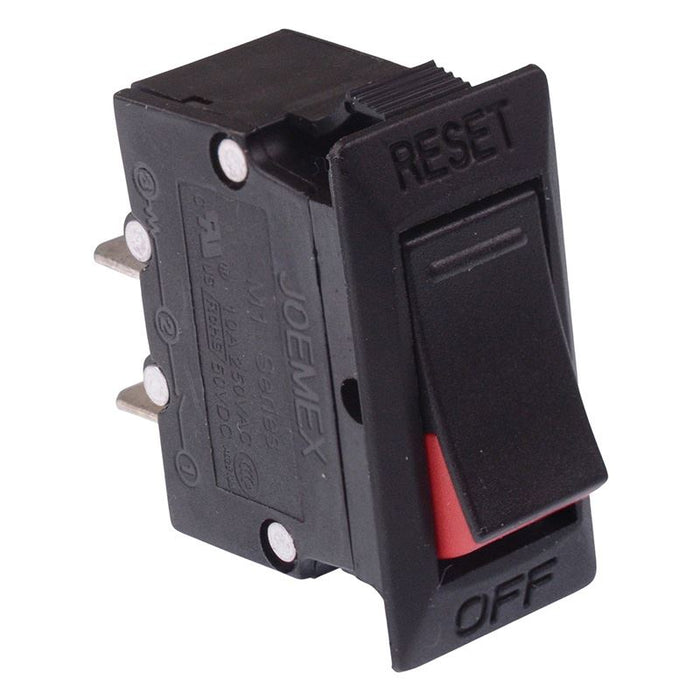

5A circuit breaker rocker switch featuring a red actuator which indicates when the breaker is tripped or awaiting reset. The circuit breaker is suitable for snap-fit panel mounting and features quick connect terminals.

  • Panel cut-out: 28.5 x 13.5mm
  • 6.35mm quick connect terminals
  • Interrupting capacity: 1000A
  • UL & CSA approved
  • Dimensions: 36.3 x 32 x 15 (height x length x width)
  • Specification
    Back order lead time 5 Days
    Current rating 5A
    Interrupting capacity 1000A
    Mounting style Panel
    Panel cut out 28.5 x 13.5mm
    Voltage rating 250V
