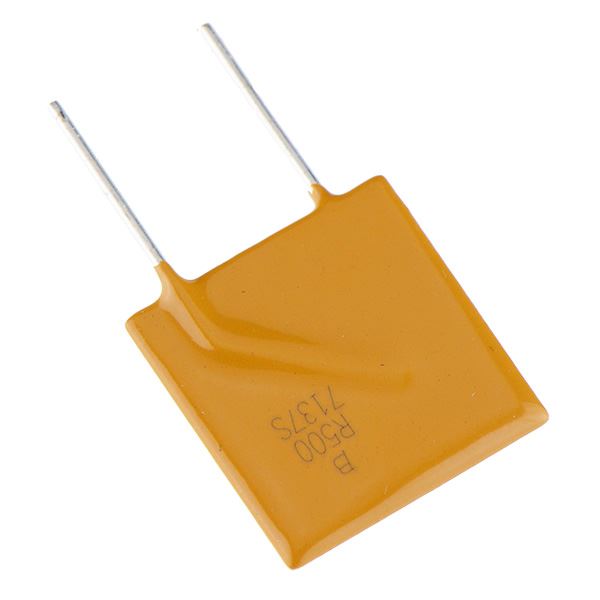

5A PTC Resettable Fuse 30V MF-R500-0-99
by Bourns
SKU 551905
MPN: MF-R500-0-99
Availability:
46 in stock
Original price
£1.03
-
Original price
£1.03
Original price
£1.03
£1.03
£1.03
-
£1.03
Current price
£1.03
Bourns resettable fuse suitable for protecting against over-current for a wide range of applications where a low voltage power supply is used.
Radial Leads Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements Maximum voltage: 30V Hold current: 5A Trip current: 10A Dimensions: 17.4 x 24.9 x 3.0mm (Width x Height x Depth) Operating temperature: -40°C to +85°C Bourns MF-R series
Specification
| Back Order Lead Time | 5 Days |
| Current Rating | 40A |
| Depth | 3.0mm |
| Height | 24.9mm |
| Operating Temperature | 40°C to +85°C |
| Pitch | 10.2mm |
| Trip Current | 10A |
| Trip Time | 14.5s |
| Voltage Rating | 30V |
| Width | 17.4mm |
