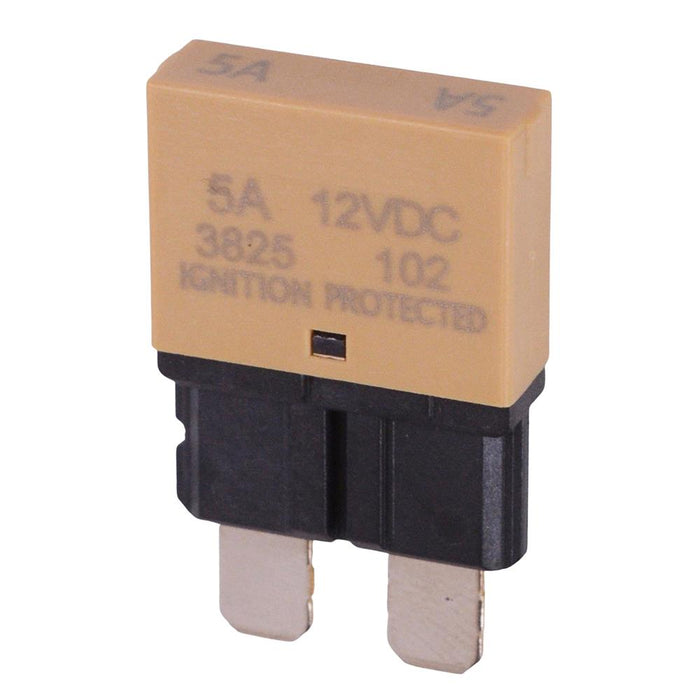

5A Modified Reset Circuit Breaker ATC Standard Blade
SKU 492180
MPN: 102-2C-050
Availability:
Out of stock
Sold out
Original price
£2.78
-
Original price
£2.78
Original price
£2.78
£2.92
£2.92
-
£2.92
Current price
£2.92
5A automotive thermal circuit breaker packaged in a ATC/ATO standard blade fuse size. The circuit breaker features modified reset operation, meaning it doesn’t reset when it is tripped until the overload is removed or power turned off. The circuit breaker can be used with a wide range of automotive and marine applications where fuse replacement inconvenient.
Rating: 5A Operation: modified reset ATC/ATO standard blade fuse size Complies with SAEJ553 and SAEJ1117 Dimensions: 31.7 x 20.0 x 6.4mm (height x width x depth)
Specification
| Back Order Lead Time | 120 Days |
| Current Rating | 5A |
| Interrupting Capacity | 100A @ 28VDC |
| MOQ | 1 |
| Mounting Style | Plug-In |
| Operating Temperature | -10°C to +60°C |
| Voltage Rating | 28VDC |
