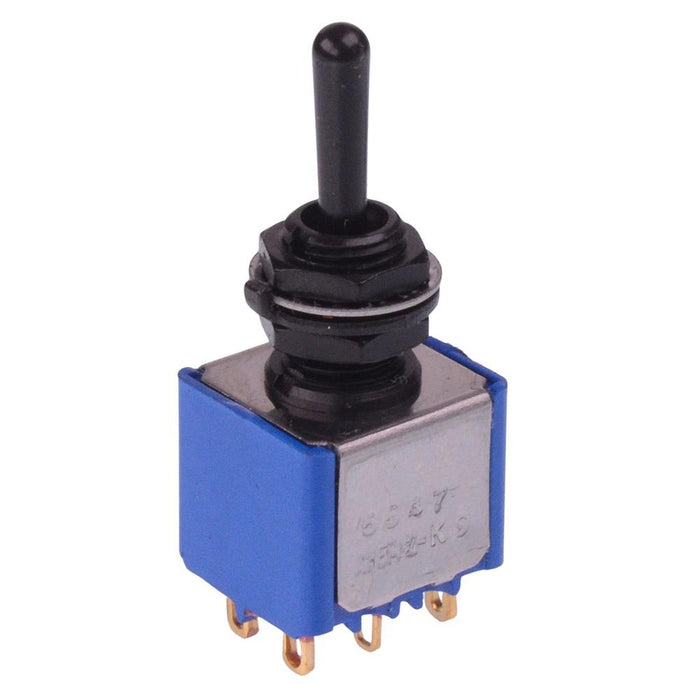

5647CDGB APEM Black (On)-Off-(On) Momentary 6.35mm Miniature Toggle Switch DPDT

SKU 487987


10 in stock
Original price £7.24 - Original price £7.24
Original price
£7.24 Inc VAT
£7.24 - £7.24
Current price £7.24 Inc VAT
The 5647CDGB is a miniature toggle switch featuring a 6.35mm bushing and (On)-Off-(On) momentary DPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature solder terminals making them suitable for a wide range of panel mount applications.

  • DPDT contacts
  • (On)-Off-(On) momentary operation
  • Solder terminals
  • Lever: round 10.5mm length
  • Rating: 0.4VA 20VAC/DC
  • Panel cut-out: 6.5mm
  • Epoxy sealed terminals
  • APEM 5000 series
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration DPDT
    Contact material Gold Plated Brass
    Contact rating 0.4VA 20VAC/DC
    Current rating 0.4VA
    Electrical life 50,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 2
    Number of positions 3
    Operating temperature -40°C to +85°C
    Panel cut out 6.5mm
    Panel thickness 2.5mm
    Product series 5000
    Switch operation (On)-Off-(On)
    Terminal type Solder
    Voltage rating 20VAC/DC
