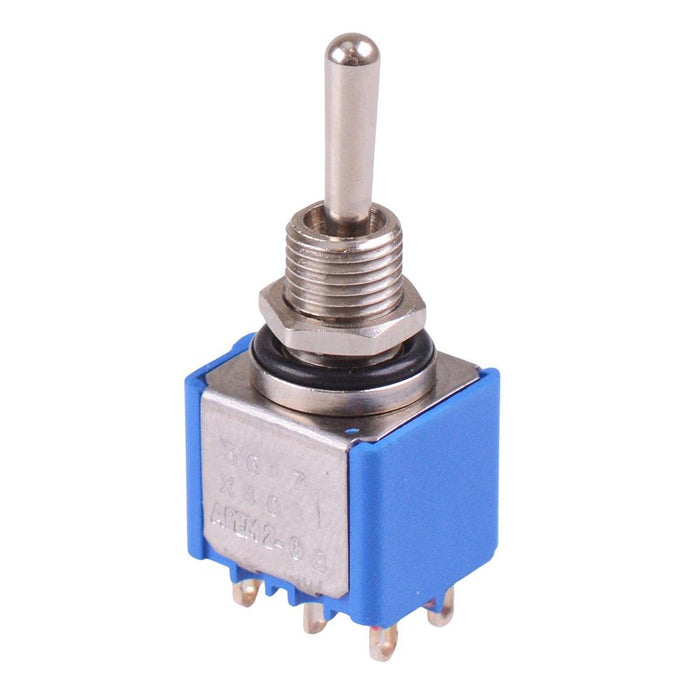

5647ABX408 APEM (On)-Off-(On) Momentary Miniature Toggle Switch DPDT
by APEM
SKU 489863
MPN: 5647ABX408
Availability:
39 in stock
Original price
£10.50
-
Original price
£10.50
Original price
£10.50
Inc VAT
£10.50
-
£10.50
Current price
£10.50
Inc VAT
The 5647ABX408 is a miniature toggle switch featuring (On)-Off-(On) DPDT contacts and black finish, from the APEM 5000 series of switches. The switches feature solder lug terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
Solder lug terminals Contact rating: 4A 30VDC Panel cut-out: 6.5mm 10.5mm length lever Silver contacts Epoxy sealed terminals Front panel sealing by two O-rings Dimensions: 34.2 x 12.0 x 13.2mm (height x depth x length) UL, CSA, CECC approved APEM 5000 series
Specification
| Actuation | Momentary |
| Contact configuration | DPDT |
| Contact material | Silver |
| Contact rating | 4A 30VDC |
| Current rating | 4A |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 6.5mm |
| Panel thickness | 2.5mm |
| Product series | 5000 |
| Switch operation | On)-Off-(On) |
| Terminal type | Solder |
| Voltage rating | 30VDC |
