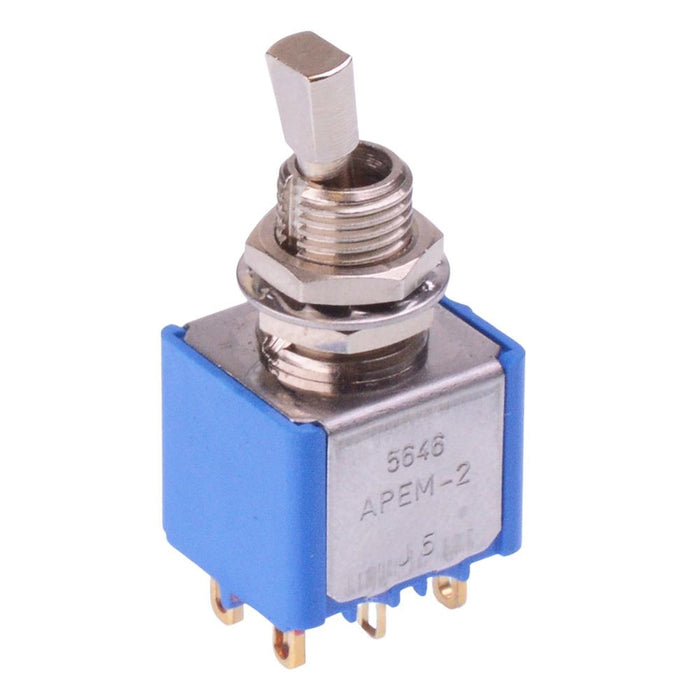

5646CDB-12 APEM On-On 6.35mm Miniature Toggle Switch DPDT
by APEM
SKU 488110
MPN: 5646CDB-12
Availability:
Only 2 left!
Original price
£3.70
-
Original price
£3.70
Original price
£3.70
Inc VAT
£3.70
-
£3.70
Current price
£3.70
Inc VAT
The 5646CDB-12 is a miniature toggle switch featuring a 6.35mm bushing and On-On DPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature solder terminals making them suitable for a wide range of panel mount applications.
DPDT contacts On-On operation Solder terminals Lever: paddle 6.3mm length Rating: 0.4VA 20VAC/DC Panel cut-out: 6.5mm Epoxy sealed terminals APEM 5000 series
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Contact configuration | DPDT |
| Contact material | Gold Plated Brass |
| Contact rating | 0.4VA 20VAC/DC |
| Current rating | 0.4VA |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 6.5mm |
| Panel thickness | 2.5mm |
| Product series | 5000 |
| Switch operation | On-On |
| Terminal type | Solder |
| Voltage rating | 20VAC/DC |
