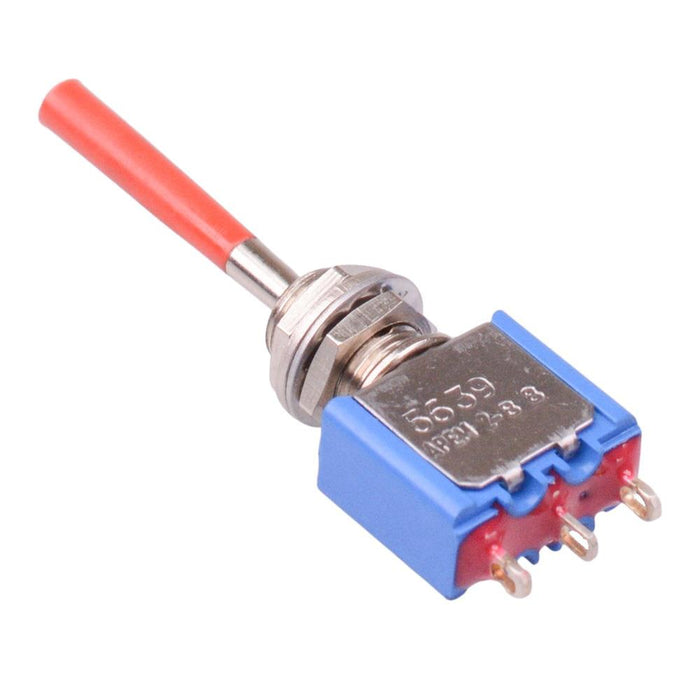

5639AB-21+U646 APEM Red Long Lever On-Off-On Miniature Toggle Switch SPDT
by APEM
SKU 489849
MPN: 5639AB-21+U646
Availability:
35 in stock
Original price
£4.44
-
Original price
£4.44
Original price
£4.44
Inc VAT
£4.44
-
£4.44
Current price
£4.44
Inc VAT
The 5639AB-21+U646 is a miniature toggle switch featuring On-Off-On SPDT contacts, from the APEM 5000 series of switches. The switches feature solder lug terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
Solder lug terminals Contact rating: 4A 30VDC Panel cut-out: 6.5mm 23.1mm length lever Silver contacts Epoxy sealed terminals Dimensions: 34.2 x 7.0 x 13.2mm (height x depth x length) UL, CSA, CECC approved APEM 5000 series
Specification
| Actuation | Latching |
| Contact configuration | SPDT |
| Contact material | Silver |
| Contact rating | 4A 30VDC |
| Current rating | 4A |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 3 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 6.5mm |
| Panel thickness | 2.5mm |
| Product series | 5000 |
| Switch operation | On-Off-On |
| Terminal type | Solder |
| Voltage rating | 30VDC |
