5637MCD (On)-Off-(On) Momentary 11.9mm Miniature Prewired Toggle Switch SPDT APEM
by APEM
SKU 492469
MPN: ASSY-03082
Availability:
24 in stock
Original price
£11.04
-
Original price
£11.04
Original price
£11.04
£11.04
-
£11.04
Current price
£11.04

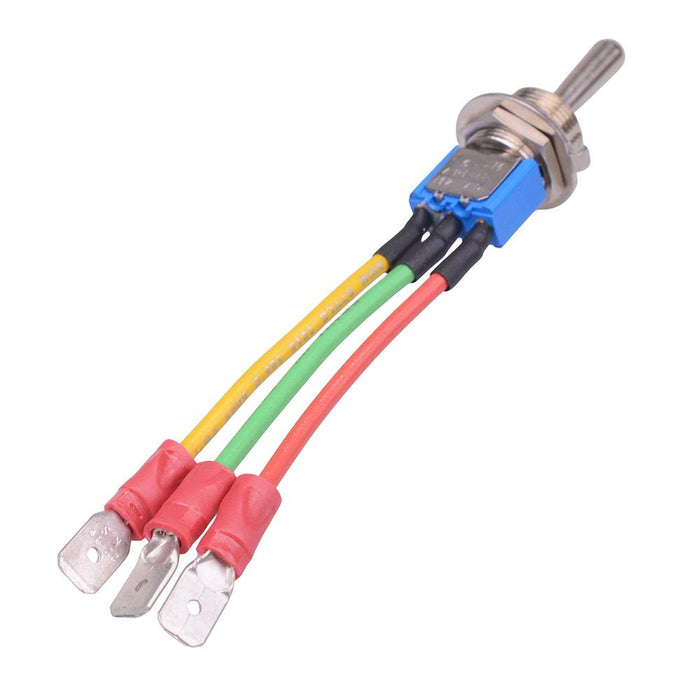

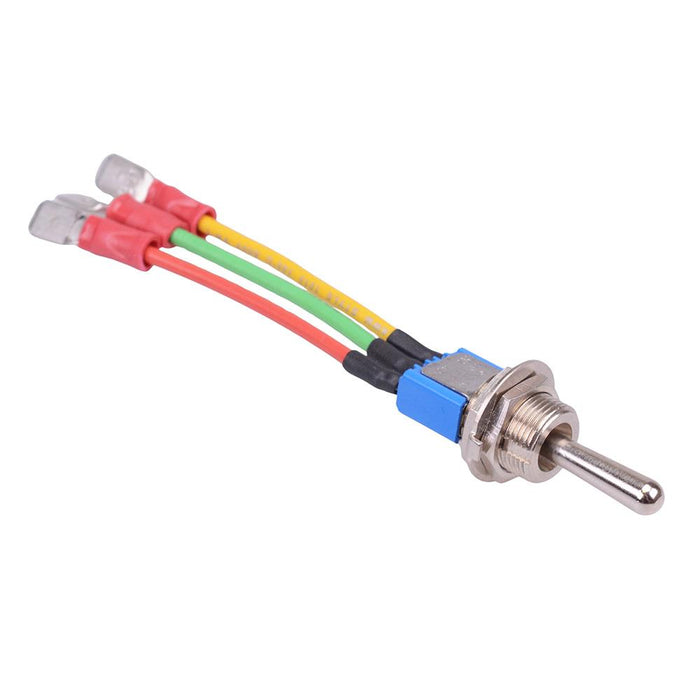

5637MCD miniature toggle switch featuring a 11.9mm bushing and (On)-Off-(On) momentary SPDT contacts, from the APEM 5000 series. The switch is terminated with 50mm cable and 6.3mm male terminals. The switch features UL, CSA, CECC approvals and is suited for a wide range of panel mouting applications.
SPDT contacts (On)-Off-(On) momentary operation 50mm prewired leads with 6.3mm terminals Rating: 0.4VA at 20V AC/DC Panel cut-out: 12.5mm APEM 5000 series
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Contact Rating | 0.4VA 20VAC/DC |
| Current Rating | 0.4VA |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 12.5mm |
| Panel Thickness | 2.5mm |
| Product Series | 5000 |
| Switch Operation | (On)-Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 20VAC/DC |
