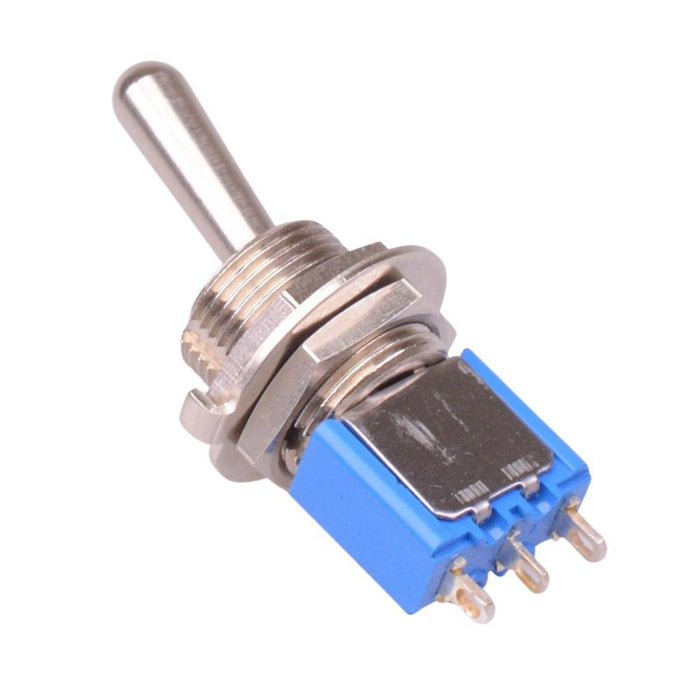

5636MA APEM On-On Miniature Toggle Switch 11.9mm Bushing SPDT
by APEM
SKU 489847
MPN: 5636MA
Availability:
53 in stock
Original price
£7.25
-
Original price
£7.25
Original price
£7.25
Inc VAT
£7.25
-
£7.25
Current price
£7.25
Inc VAT
The 5636MA is a miniature toggle switch featuring On-On SPDT contacts, from the APEM 5000 series of switches. The switches feature solder lug terminals and 11.9mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
Solder lug terminals Contact rating: 4A 30VDC Panel cut-out: 12.5mm 10.5mm length round lever Silver contacts Epoxy sealed terminals Dimensions: 37.1 x 7.0 x 13.2mm (height x depth x length) UL, CSA, CECC approved APEM 5000 series
Specification
| Actuation | Latching |
| Contact configuration | SPDT |
| Contact material | Silver |
| Contact rating | 4A 30VDC |
| Current rating | 4A |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 12.5mm |
| Panel thickness | 2.5mm |
| Product series | 5000 |
| Switch operation | On-On |
| Terminal type | Solder |
| Voltage rating | 30VDC |
