5636CD16 APEM On-On 6.35mm Miniature Toggle Switch SPDT

by APEM
SKU 487746

MPN: 5636CD16

Availability:
184 in stock
Original price £2.68 - Original price £2.68
Original price
£2.68 Inc VAT
£2.68 - £2.68
Current price £2.68 Inc VAT

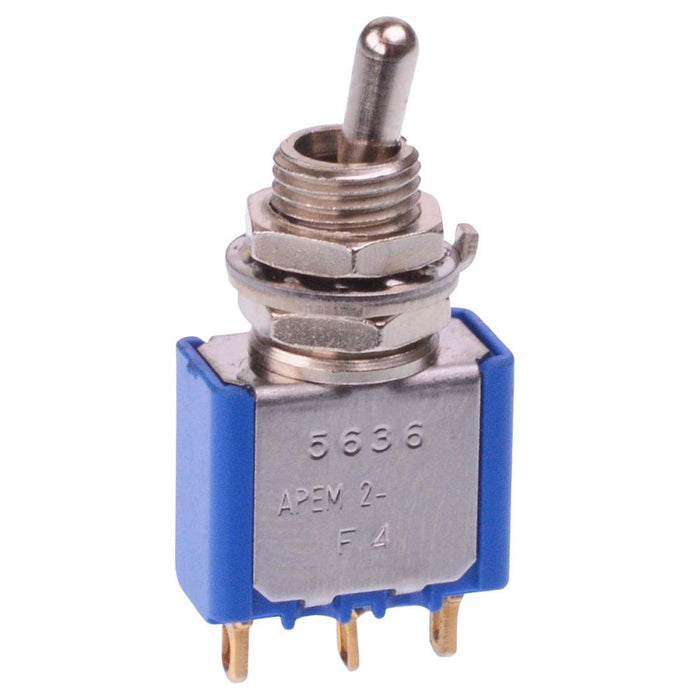

The 5636CD16 is a miniature toggle switch featuring a 6.35mm bushing and On-On SPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature solder terminals making them suitable for a wide range of panel mount applications.

  • SPDT contacts
  • On-On operation
  • Solder terminals
  • Lever: round 5.5mm length
  • Rating: 0.4VA 20VAC/DC
  • Panel cut-out: 6.5mm
  • APEM 5000 series
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration SPDT
    Contact material Gold Plated Brass
    Contact rating 0.4VA 20VAC/DC
    Current rating 0.4VA
    Electrical life 50,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -40°C to +85°C
    Panel cut out 6.5mm
    Panel thickness 2.5mm
    Product series 5000
    Switch operation On-On
    Terminal type Solder
    Voltage rating 20VAC/DC
