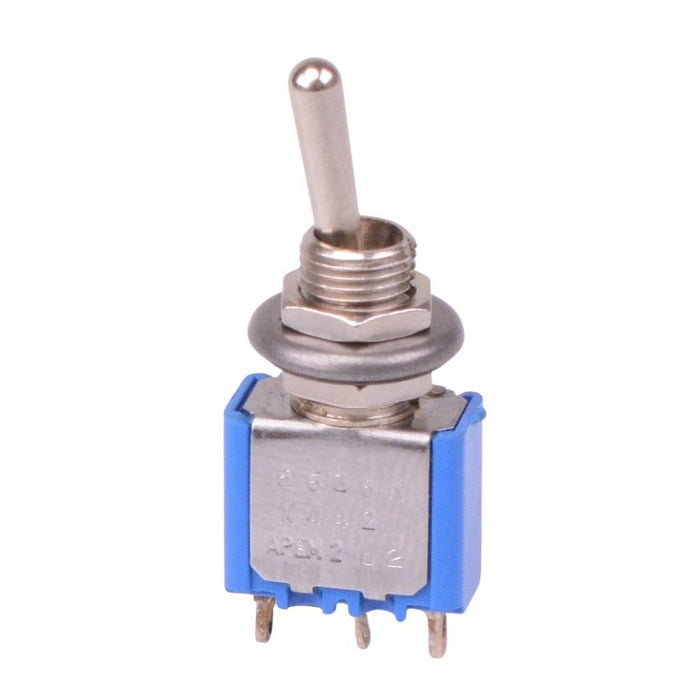

5636AKX442 APEM On-On Miniature 6.35mm Toggle Switch SPDT
by APEM
SKU 489845
MPN: 5636AKX442
Availability:
97 in stock
Original price
£2.84
-
Original price
£2.84
Original price
£2.84
Inc VAT
£2.84
-
£2.84
Current price
£2.84
Inc VAT
The 5636AKX442 is a miniature toggle switch featuring On-On SPDT contacts, from the APEM 5000 series of switches. The switches feature solder lug terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
Solder lug terminals Contact rating: 4A 30VDC Panel cut-out: 6.5mm 6.3mm length flat lever Silver contacts Front panel sealing Dimensions: 34.0 x 7.0 x 13.2mm (height x depth x length) UL, CSA, CECC approved APEM 5000 series
Specification
| Actuation | Latching |
| Contact configuration | SPDT |
| Contact material | Silver |
| Contact rating | 4A 30VDC |
| Current rating | 4A |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 6.5mm |
| Panel thickness | 2.5mm |
| Pitch | 4.7mm |
| Product series | 5000 |
| Switch operation | On-On |
| Terminal type | Solder |
| Voltage rating | 30VDC |
