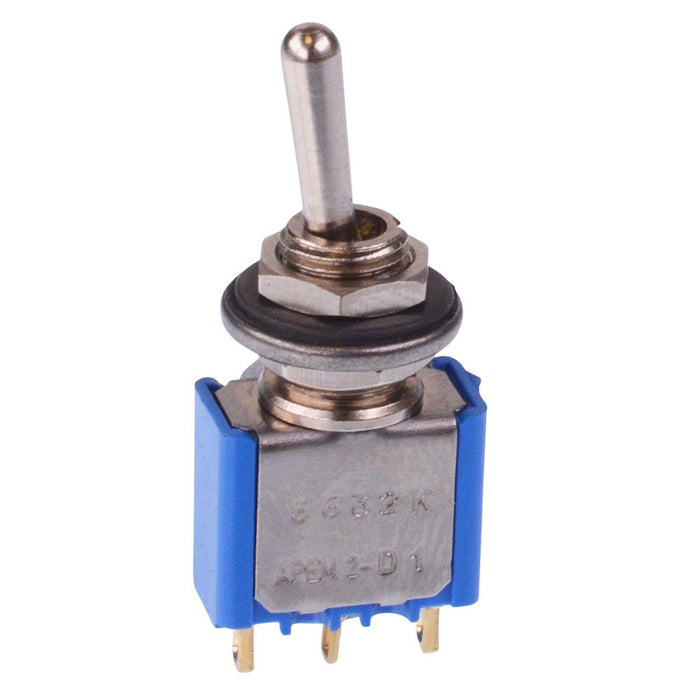

5632CDK APEM On-(On) Momentary 6.35mm Miniature Toggle Switch SPDT
by APEM
SKU 488067
MPN: 5632CDK
Availability:
10 in stock
Original price
£4.93
-
Original price
£4.93
Original price
£4.93
Inc VAT
£4.93
-
£4.93
Current price
£4.93
Inc VAT
The 5632CDK is a miniature toggle switch featuring a 6.35mm bushing and On-(On) momentary SPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature solder terminals making them suitable for a wide range of panel mount applications.
SPDT contacts On-(On) momentary operation Solder terminals Lever: round 10.5mm length Rating: 0.4VA 20VAC/DC Panel cut-out: 6.5mm APEM 5000 series
Specification
Actuation | Momentary |
Back order lead time | 10 Days |
Contact configuration | SPDT |
Contact material | Gold Plated Brass |
Contact rating | 0.4VA 20VAC/DC |
Current rating | 0.4VA |
Electrical life | 50,000 Cycles |
Illuminated | No |
Mounting style | Panel |
Number of poles | 1 |
Number of positions | 2 |
Operating temperature | -40°C to +85°C |
Panel cut out | 6.5mm |
Panel thickness | 2.5mm |
Product series | 5000 |
Switch operation | On-(On) |
Terminal type | Solder |
Voltage rating | 20VAC/DC |
