5266WWCDBX373 APEM On-On 6.35mm Miniature Toggle Switch 4PDT
by APEM
SKU 487226
MPN: 5266WWCDBX373
Availability:
422 in stock
Original price
£6.45
-
Original price
£6.45
Original price
£6.45
Inc VAT
£6.45
-
£6.45
Current price
£6.45
Inc VAT

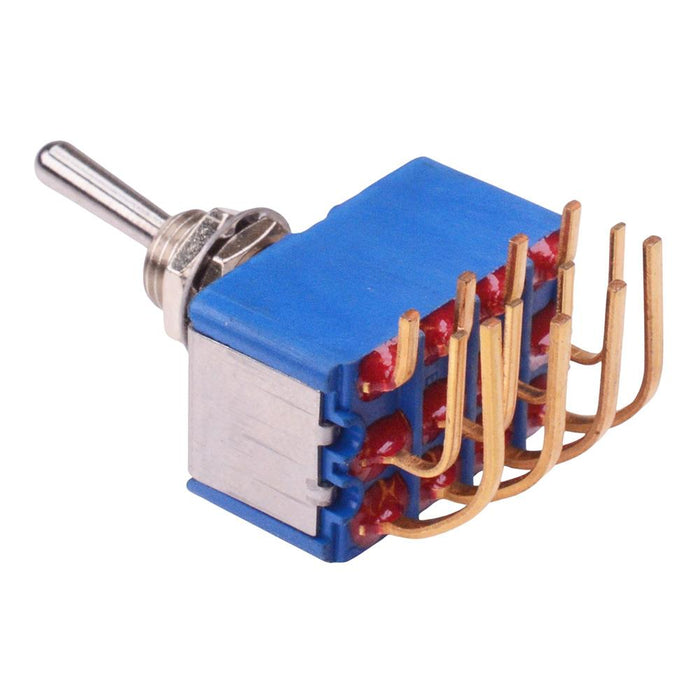

The 5266WWCDBX373 is a miniature toggle switch featuring a 6.35mm bushing and On-On 4PDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of panel and PCB mount applications.
4PDT contacts On-On operation Vertical mounting Right angle PCB terminals Lever: round 10.5mm length 4.7mm pitch terminal spacing Rating: 0.4VA 20VAC/DC Panel cut-out: 6.5mm Epoxy sealed terminals APEM 5000 series
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Contact configuration | 4PDT |
| Contact material | Gold Plated Brass |
| Contact rating | 0.4VA 20VAC/DC |
| Current rating | 0.4VA |
| Electrical life | 30,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 4 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 6.5mm |
| Panel thickness | 2.5mm |
| Pitch | 4.7mm |
| Product series | 5000 |
| Switch operation | On-On |
| Terminal type | Through Hole |
| Voltage rating | 20VAC/DC |
