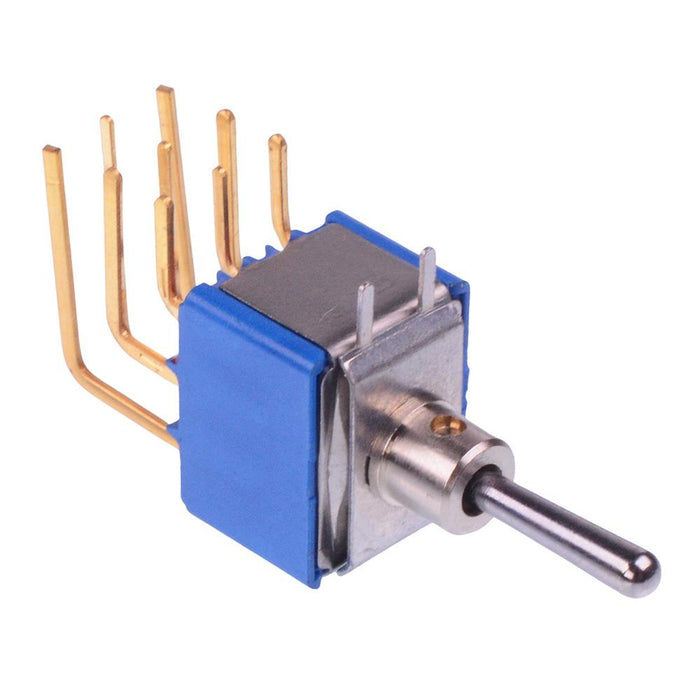

5258WCDB APEM On-Off-(On) Momentary PCB Miniature Toggle Switch 3PDT

by APEM
SKU 487623

MPN: 5258WCDB

Availability:
25 in stock
Original price £4.60 - Original price £4.60
Original price
£4.60 Inc VAT
£4.60 - £4.60
Current price £4.60 Inc VAT
The 5258WCDB is a miniature toggle switch featuring a plain bushing and On-Off-(On) momentary 3PDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of PCB mount applications.

  • 3PDT contacts
  • On-Off-(On) momentary operation
  • Right angle PCB terminals
  • Lever: round 13.5mm length
  • 4.7mm pitch terminal spacing
  • Rating: 0.4VA 20VAC/DC
  • Epoxy sealed terminals
  • APEM 5000 series
  • Specification
    Actuation Latching / Momentary
    Back order lead time 10 Days
    Contact configuration 3PDT
    Contact material Gold Plated Brass
    Contact rating 0.4VA 20VAC/DC
    Current rating 0.4VA
    Electrical life 40,000 Cycles
    Illuminated No
    Mounting style PCB
    Number of poles 3
    Number of positions 3
    Operating temperature -40°C to +85°C
    Pitch 4.7mm
    Product series 5000
    Switch operation On-Off-(On)
    Terminal type Through Hole
    Voltage rating 20VAC/DC
