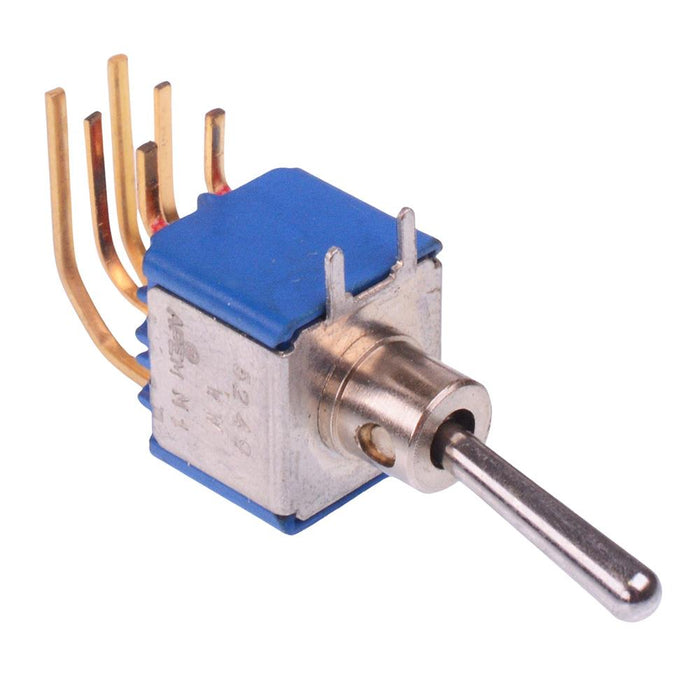

5249WWCDB13 APEM On-Off-On Miniature PCB Toggle Switch DPDT
by APEM
SKU 487664
MPN: 5249WWCDB13
Availability:
73 in stock
Original price
£0
Original price
£4.69
-
Original price
£4.69
Original price
Current price
£4.69(inc. VAT)
£4.69
-
£4.69
Current price
£4.69
Quantity Discounts
Buy 25 - 99 | Get 13% off | £4.08(inc. VAT) each |
Buy 100 - 249 | Get 21% off | £3.71(inc. VAT) each |
Buy 250 - 499 | Get 28% off | £3.38(inc. VAT) each |
Buy 500+ | Get 33% off | £3.14(inc. VAT) each |
The 5249WWCDB13 is a miniature toggle switch featuring a plain bushing and On-Off-On DPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of PCB mount applications.
DPDT contacts On-Off-On operation Vertical mounting Right angle PCB terminals Lever: round 12.5mm length 4.7mm pitch terminal spacing Rating: 0.4VA 20VAC/DC Epoxy sealed terminals APEM 5000 series
Specification
Actuation | Latching |
Back Order Lead Time | 10 Days |
Contact Configuration | DPDT |
Contact Material | Gold Plated Brass |
Contact Rating | 0.4VA 20VAC/DC |
Current Rating | 0.4VA |
Electrical Life | 50,000 Cycles |
Illuminated | No |
Mounting Style | PCB |
Number of Poles | 2 |
Number of Positions | 3 |
Operating Temperature | -40°C to +85°C |
Pitch | 4.7mm |
Product Series | 5000 |
Switch Operation | On-Off-On |
Terminal Type | Through Hole |
Voltage Rating | 20VAC/DC |
