5247WWCDB7 APEM (On)-Off-(On) Momentary Miniature PCB Toggle Switch DPDT
by APEM
SKU 487644
MPN: 5247WWCDB7
Availability:
67 in stock
Original price
£4.28
-
Original price
£4.28
Original price
£4.28
Inc VAT
£4.28
-
£4.28
Current price
£4.28
Inc VAT

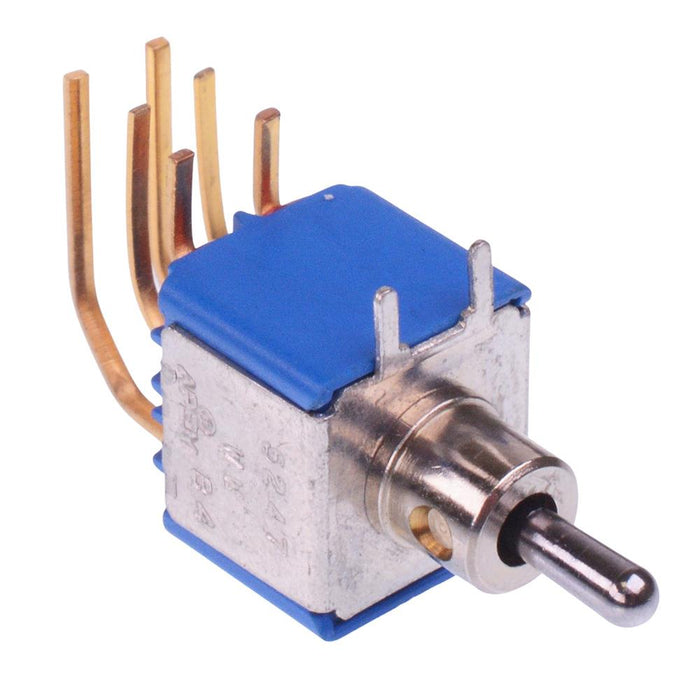

The 5247WWCDB7 is a miniature toggle switch featuring a plain bushing and (On)-Off-(On) momentary DPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of PCB mount applications.
DPDT contacts (On)-Off-(On) momentary operation Vertical mounting Right angle PCB terminals Lever: round 6.7mm length 4.7mm pitch terminal spacing Rating: 0.4VA 20VAC/DC Epoxy sealed terminals APEM 5000 series
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | DPDT |
| Contact material | Gold Plated Brass |
| Contact rating | 0.4VA 20VAC/DC |
| Current rating | 0.4VA |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Mounting style | PCB |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -40°C to +85°C |
| Pitch | 4.7mm |
| Product series | 5000 |
| Switch operation | (On)-Off-(On) |
| Terminal type | Through Hole |
| Voltage rating | 20VAC/DC |
