5246WWADBX386 APEM On-On Right Angle PCB Miniature Toggle Switch DPDT
by APEM
SKU 489833
MPN: 5246WWADBX386
Availability:
201 in stock
Original price
£8.62
-
Original price
£8.62
Original price
£8.62
Inc VAT
£8.62
-
£8.62
Current price
£8.62
Inc VAT

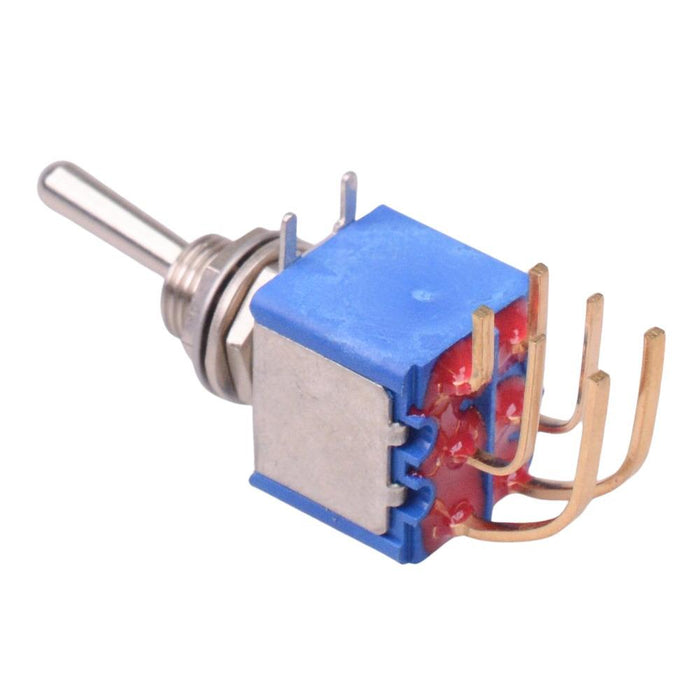

The 5246WWADBX386 is a right angle miniature toggle switch featuring On-On DPDT contacts, from the APEM 5000 series of switches. The switches feature PCB terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
PCB solder terminals Contact rating: 4A 30VDC Gold plated silver contacts Epoxy sealed terminals 10.5mm round lever Terminal pitch: 4.75 x 3.81mm Body dimensions: 11 x 12 x 13.2mm (length x width x height) UL, CSA, CECC approved APEM 5000 series
Specification
| Actuation | Latching |
| Contact configuration | DPDT |
| Contact material | Gold Plated Silver |
| Contact rating | 4A 30VDC |
| Current rating | 4A |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Moq | 1 |
| Mounting style | PCB |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Pitch | 4.7mm |
| Product series | 5000 |
| Switch operation | On-On |
| Terminal type | Solder |
| Voltage rating | 30VDC |
