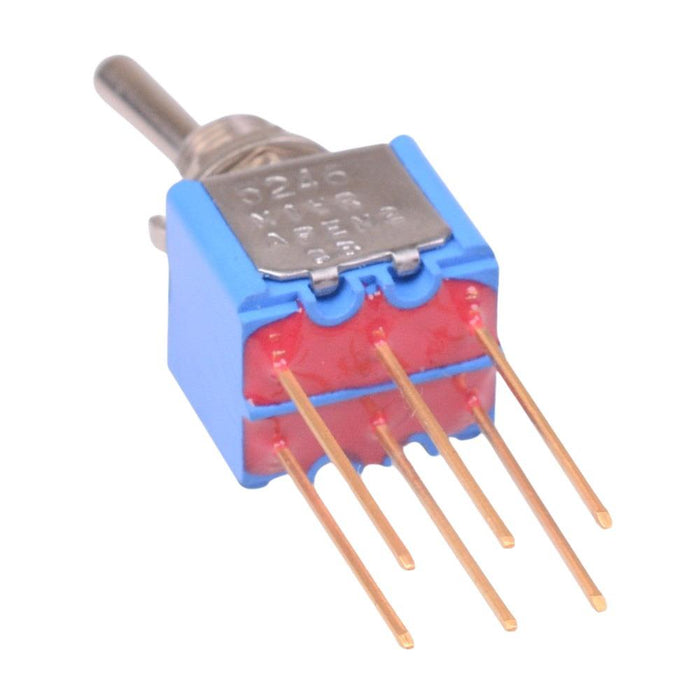

5246MIWRCDB APEM On-On Vertical PCB Miniature Toggle Switch DPDT

by APEM
SKU 489832

MPN: 5246MIWRCDB

Availability:
49 in stock
Original price £7.48 - Original price £7.48
Original price
£7.48 Inc VAT
£7.48 - £7.48
Current price £7.48 Inc VAT
The 5246MIWRCDB is a vertical miniature toggle switch featuring On-On DPDT contacts, from the APEM 5000 series of switches. The switches feature PCB terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.

  • PCB solder terminals
  • Contact rating: 4A 30VDC
  • Gold plated brass contacts
  • Epoxy sealed terminals
  • 10.5mm round lever
  • Terminal pitch: 4.75 x 4.7mm
  • Body dimensions: 11 x 12 x 13.2mm (length x width x height)
  • UL, CSA, CECC approved
  • APEM 5000 series
  • Specification
    Actuation Latching
    Contact configuration DPDT
    Contact material Gold Plated Brass
    Contact rating 0.4VA 20VAC/DC
    Current rating 0.4VA
    Electrical life 50,000 Cycles
    Illuminated No
    Moq 1
    Mounting style Panel
    Number of poles 2
    Number of positions 2
    Operating temperature -40°C to +85°C
    Panel cut out 6.5mm
    Panel thickness 2.5mm
    Pitch 4.7mm
    Product series 5000
    Switch operation On-On
    Terminal type Solder
    Voltage rating 20VAC/DC
