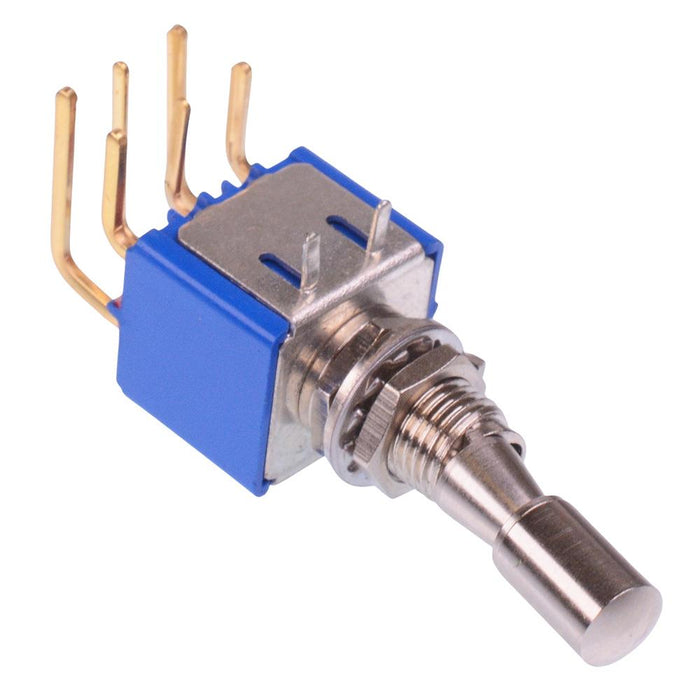

5242WADB-14VX386 APEM On-On Locking 6.35mm Miniature Toggle Switch DPDT 4A 30VDC

by APEM
SKU 487607

MPN: 5242WADB-14VX386

Availability:
16 in stock
Original price £4.52 - Original price £4.52
Original price
£4.52 Inc VAT
£4.52 - £4.52
Current price £4.52 Inc VAT
The 5242WADB-14VX386 is a miniature toggle switch featuring a 6.35mm bushing and On-On DPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of panel and PCB mount applications.

  • DPDT contacts
  • On-On operation
  • Right angle PCB terminals
  • Lever: locking 14.85mm length
  • 4.7mm pitch terminal spacing
  • Rating: 4A 30VDC
  • Panel cut-out: 6.5mm
  • Epoxy sealed terminals
  • APEM 5000 series
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration DPDT
    Contact material Gold Plated Silver
    Contact rating 4A 30VDC
    Current rating 4A
    Electrical life 50,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 2
    Number of positions 2
    Operating temperature -40°C to +85°C
    Panel cut out 6.5mm
    Panel thickness 2.5mm
    Pitch 4.7mm
    Product series 5000
    Switch operation On-On
    Terminal type Through Hole
    Voltage rating 30VDC
