5239WA APEM On-Off-On Miniature PCB Toggle Switch SPDT 4A 30VDC
by APEM
SKU 487441
MPN: 5239WA
Availability:
442 in stock
Original price
£2.68
-
Original price
£2.68
Original price
£2.68
£2.68
-
£2.68
Current price
£2.68

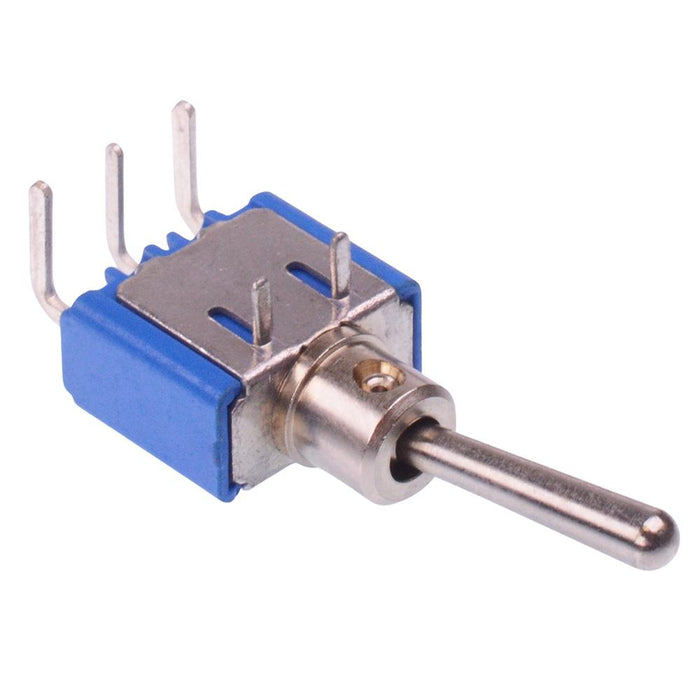

The 5239WA is a miniature toggle switch featuring a plain bushing and On-Off-On SPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of PCB mount applications.
SPDT contacts On-Off-On operation Right angle PCB terminals Lever: round 13.5mm length 4.7mm pitch terminal spacing Rating: 4A 30VDC APEM 5000 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 4.7mm |
| Product Series | 5000 |
| Switch Operation | On-Off-On |
| Terminal Type | Through Hole |
| Voltage Rating | 30VDC |
