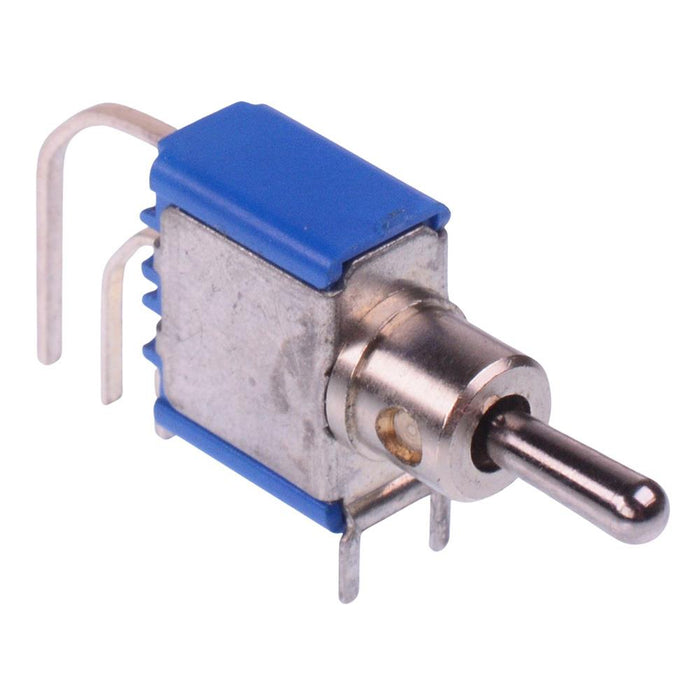

5237WWAB16 APEM (On)-Off-(On) Momentary Miniature PCB Toggle Switch SPDT 4A 30VDC
by APEM
SKU 487962
MPN: 5237WWAB16
Availability:
96 in stock
Original price
£3.16
-
Original price
£3.16
Original price
£3.16
Inc VAT
£3.16
-
£3.16
Current price
£3.16
Inc VAT
The 5237WWAB16 is a miniature toggle switch featuring a plain bushing and (On)-Off-(On) momentary SPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of PCB mount applications.
SPDT contacts (On)-Off-(On) momentary operation Vertical mounting Right angle PCB terminals Lever: round 5.5mm length 4.7mm pitch terminal spacing Rating: 4A 30VDC Epoxy sealed terminals APEM 5000 series
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | SPDT |
| Contact material | Silver |
| Contact rating | 4A 30VDC |
| Current rating | 4A |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Mounting style | PCB |
| Number of poles | 1 |
| Number of positions | 3 |
| Operating temperature | -40°C to +85°C |
| Pitch | 4.7mm |
| Product series | 5000 |
| Switch operation | (On)-Off-(On) |
| Terminal type | Through Hole |
| Voltage rating | 30VDC |
