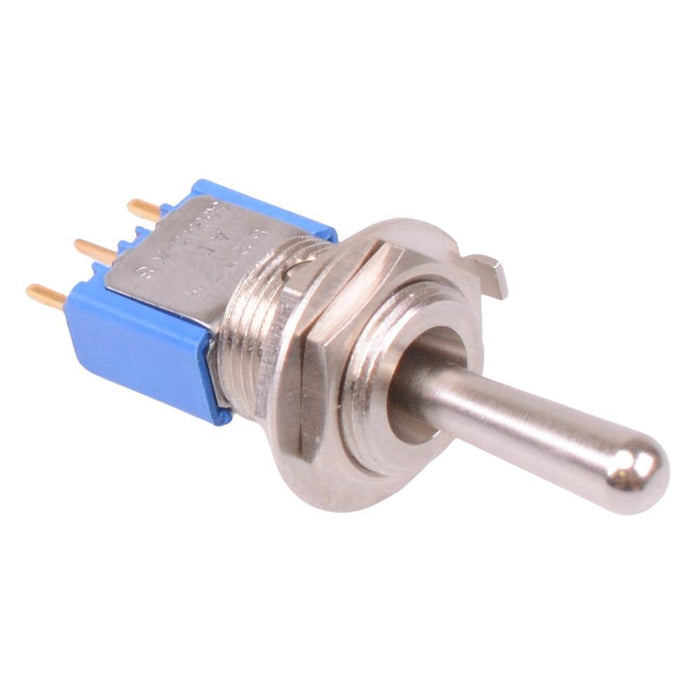

5237MADB APEM (On)-Off-(On) Momentary 12mm Miniature Toggle Switch SPDT
by APEM
SKU 489828
MPN: 5237MADB
Availability:
149 in stock
Original price
£6.28
-
Original price
£6.28
Original price
£6.28
£6.28
-
£6.28
Current price
£6.28
The 5237MADB is a miniature toggle switch featuring (On)-Off-(On) SPDT contacts, from the APEM 5000M series of switches. The switches feature PCB terminals and 11.9mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
PC terminals Contact rating: 4A 30VDC Panel cut-out: 12.5mm Dimensions: 44.1 x 7.0 x 13.2mm (height x depth x length) Panel thickness: 6mm max Gold plated silver contact material UL, CSA, CECC approved APEM 5000M series
Specification
| Actuation | Momentary |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 12.5mm |
| Panel Thickness | 2.5mm |
| Pitch | 4.7mm |
| Product Series | 5000 |
| Switch Operation | (On)-Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
