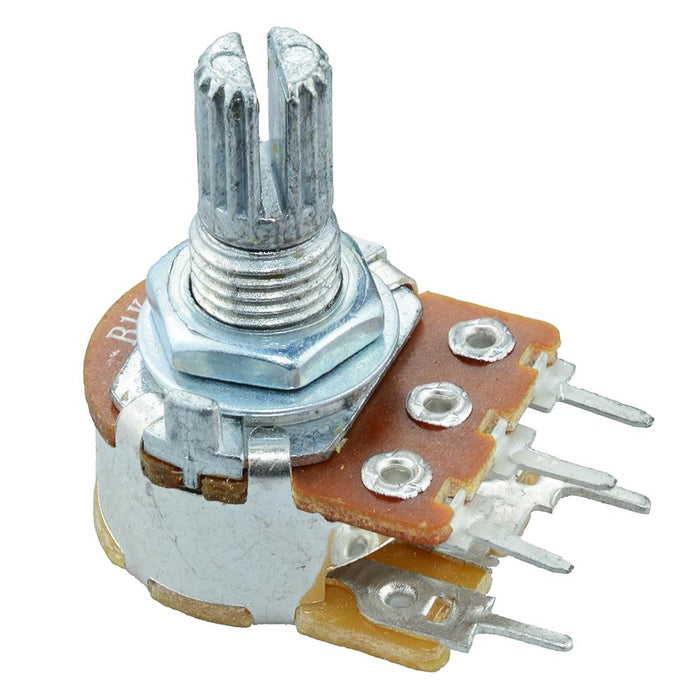

50K Logarithmic 16mm Potentiometer with Switch

SKU 484822

MPN: 484822

Availability:
897 in stock
Original price £0
Original price £0.77 - Original price £0.77
Original price
Current price £0.77(inc. VAT)
£0.77 - £0.77
Current price £0.77
 More payment options
Quantity Discounts
Buy 25 - 99Get 13% off£0.67 each
Buy 100 - 249Get 21% off£0.61 each
Buy 250 - 499Get 28% off£0.55 each
Buy 500+Get 33% off£0.52 each
50K logarithmic switched 16mm potentiometer with a splined 6mm shaft suitable for PCB mounting.

  • Features switch
  • Standard 16mm diameter size
  • 20% tolerance
  • Panel cut-out: 7mm
  • 5mm pitch
  • 15mm shaft length
  • Specification
    Back Order Lead Time 45 Days
    Dimensions 17mm Diameter
    Maximum Voltage 150V
    Mounting Hole Diameter 7mm
    Mounting Type Panel Mount
    Operating Temperature -25°C to +70°C
    Pitch 5mm
    Power Rating 0.063W
    Resistance 50KΩ
    Shaft Diameter 6mm
    Taper Logarithmic
    Termination Type Pin
    Tolerance ±20%
    Total Rotation 300°
