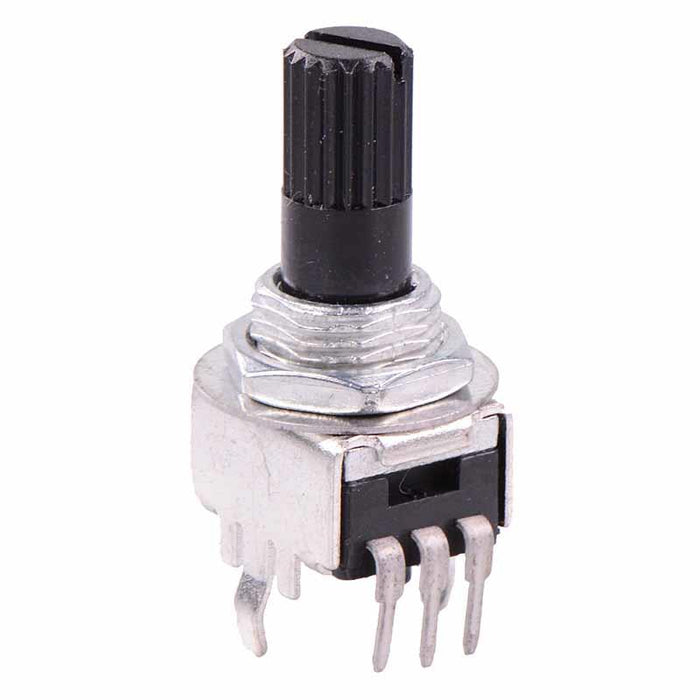

50K Linear 9mm Potentiometer Knurled 6mm Shaft

SKU 482347

MPN: 482347

Availability:
273 in stock
Original price £0.49 - Original price £0.49
Original price
£0.49 Inc VAT
£0.49 - £0.49
Current price £0.49 Inc VAT
50K linear 9mm potentiometer featuring an insulated 6mm splined shaft and snap-in clip. The potentiometers are suitable for PCB or panel mount applications including use with communications equipment, consumer goods, portable electronics, commercial appliances and sound equipment.

  • Insulated 6mm splined shaft
  • Snap-in clip
  • 9mm panel cut-out
  • ±20% tolerance
  • 25mm shaft length
  • 0.05W power rating
  • 50V AC / 20V DC maximum operating voltage
  • Specification
    Back order lead time 45 Days
    Maximum voltage 50VAC / 20VDC
    Mounting hole diameter 9mm
    Mounting type PCB
    Operating temperature -10°C to +70°C
    Pitch 2.5mm
    Power rating 0.05W
    Resistance 50KΩ
    Shaft diameter 6mm
    Taper Linear
    Termination type Pin
    Tolerance ±20%
    Total rotation 280°
