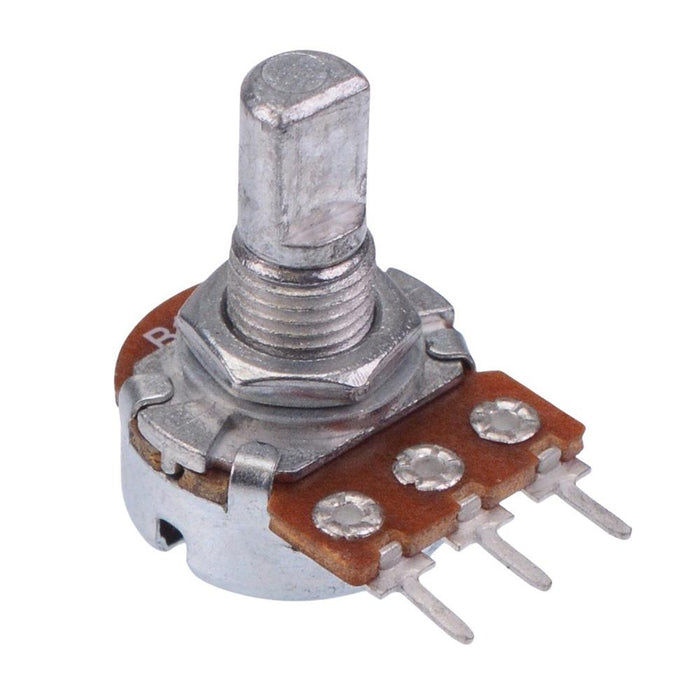

50K Linear 16mm Potentiometer D Shaft
SKU 490383
MPN: R16148D-1A-2-B50K
Availability:
451 in stock
Original price
£0.63
-
Original price
£0.63
Original price
£0.63
£0.63
-
£0.63
Current price
£0.63
50K 16mm potentiometers with a linear taper and D type shaft suitable for PCB mounting.
50k linear taper Standard 16mm body diameter PCB contacts 20% tolerance Panel cut-out: 7mm 5mm pitch 15mm shaft length
Specification
| Back Order Lead Time | 120 Days |
| Dimensions | 17mm Diameter |
| Maximum Voltage | 200V |
| MOQ | 1 |
| Mounting Hole Diameter | 7mm |
| Mounting Type | Panel Mount |
| Operating Temperature | -25°C to +70°C |
| Pitch | 5mm |
| Power Rating | 0.125W |
| Resistance | 50KΩ |
| Shaft Diameter | 6mm |
| Taper | Linear |
| Termination Type | Pin |
| Tolerance | ±20% |
| Total Rotation | 300° |
