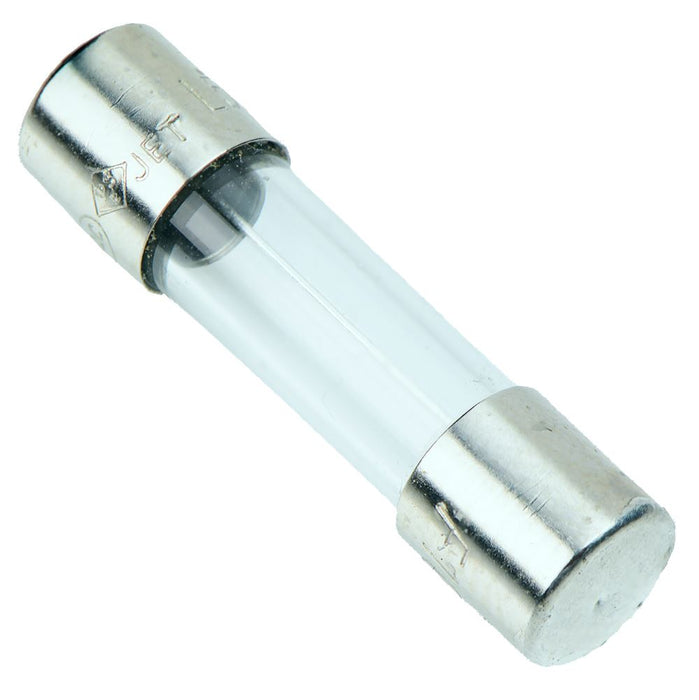

500mA 5x20mm Glass Quick Blow Fuse 250V
SKU 550032
MPN: FS-140-0500
Availability:
Out of stock
Sold out
Original price
£0.13
-
Original price
£0.13
Original price
£0.13
£0.13
-
£0.13
Current price
£0.13
500mA 5x20mm glass bodied cylindrical cartridge fuse featuring fast blow characteristic and 250VAC voltage rating. The fuse is ideal for protecting devices from short circuits and overcurrent.
Current rating: 500mA Voltage rating: 250VACBlow characteristic: quick Dimensions: 5.2x20mm (diameter x length) Cap material: nickel plated brass Tube material: glass UL, VDE, CCC, KC approved
Specification
| Back Order Lead Time | 30 Days |
| Blow Characteristic | Fast Blow |
| Body Material | Glass |
| Contact Material | Nickel Plated Brass |
| Current Rating | 500mA |
| Diameter | 5mm |
| Length | 20mm |
| MOQ | 10 |
| Operating Temperature | -55°C to +125°C |
| Voltage Rating | 250VAC |
