5 Way Spring Lever Terminal Block Connector 32A 450V - Box of 30
by Degson
SKU 934957
MPN: DGBSC-SG01/4-05P17
Availability:
661 in stock
Original price
£11.70
-
Original price
£11.70
Original price
£11.70
£11.70
-
£11.70
Current price
£11.70

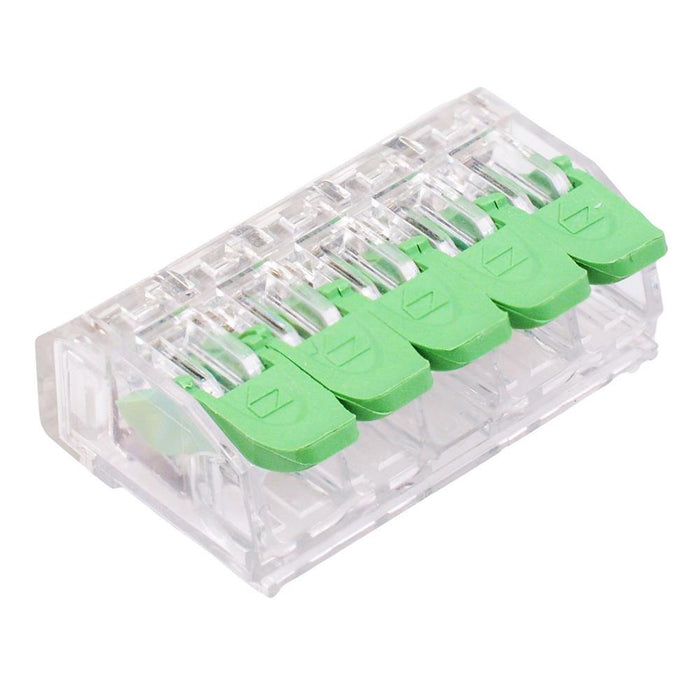

Save time and money with these 5 way terminal blocks by Degson. The connectors feature a spring lever allowing both stranded and solid wires to be connected without the need of any tools. The terminal blocks meet numerous certifications ensuring a reliable and strong connection is made with the cable. The spring lever design allows these connectors to be used in seconds unlike traditional screw alternatives and the 32A 450V rating makes them an ideal solution in numerous applications.
Pack size: 30 5 ways Push in spring connection Rated current: 32A Rated voltage: 450V Compatible wire size: 24~12AWG / 0.2~4.0mm² Strip length: 12mm Pitch: 5.6mm Contact material: tin plated copper Insulation material: PC UL94V-2 Dimensions: 20 x 28 x 10.2mm (depth x length x height) Certifications: UL, EAC, VDE, REACH, RoHS
Specification
| Colour | Green |
| Contact Material | Tin Plated Copper |
| Current Rating | 32A |
| Housing Material | PC |
| Mounting Type | Cable Mount |
| Number of Ways | 5 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 5.6mm |
| Termination Method | Spring Clamp |
| Voltage Rating | 450VAC |
| Wire Range | 24-12AWG |
