5 Way M12 Female Industrial Circular Connector IP67 4A 250V
by Degson
SKU 488844
MPN: PB-M12A-05P-FF-SL7001-00AH
Availability:
98 in stock
Original price
£4.43
-
Original price
£4.43
Original price
£4.43
Inc VAT
£4.43
-
£4.43
Current price
£4.43
Inc VAT

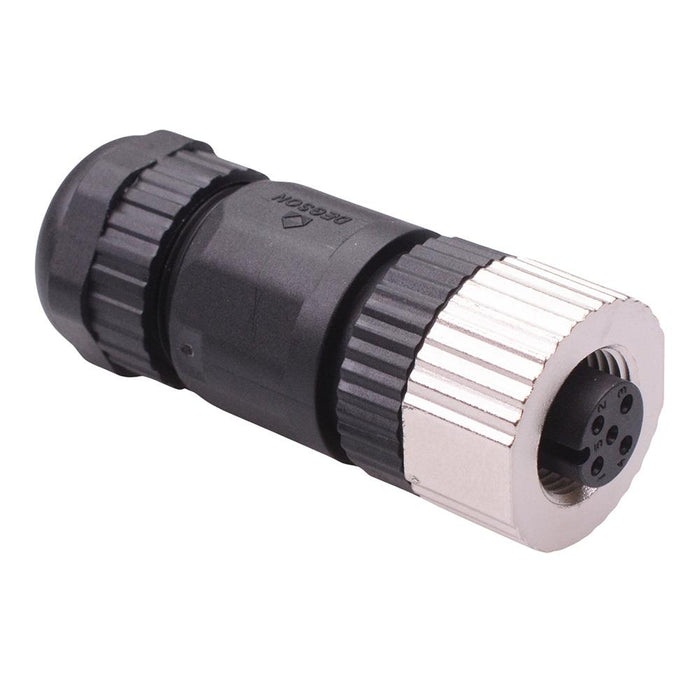

5 contact M12 female circular connector featuring a straight nylon body and screw connections. The connector is sealed to IP67 making it suitable for industrial, signal, power supply, data transmission and various other applications. The plug is compliant with IEC 61076 standard and is compatible with other connectors on the market with the same contact arrangement.
5 female contacts (A coded) M12 series Screw terminals Sealed to IP67 Unshielded Current rating: 4A Voltage rating: 250V Housing material: PA Contact material: gold plated copper alloy Dimensions: 51 x 20mm (length x diameter)
Specification
Back order lead time | 120 Days |
Contact material | Gold Plated Copper Alloy |
Current rating | 4A |
Gender | Female |
Housing material | PA |
Mounting type | Cable Mount |
Number of ways | 5 |
Operating temperature | -25°C to +105°C |
Protection level | IP67 |
Termination method | Screw |
Thread size | M12 |
Voltage rating | 250V |
