5-Way 3.5mm Right Angle Pluggable Terminal Block 8A 300V
by Degson
SKU 488696
MPN: 15EDGK-3.5/5P
Availability:
1511 in stock
Original price
£0.56
-
Original price
£0.56
Original price
£0.56
£0.59
£0.59
-
£0.59
Current price
£0.59

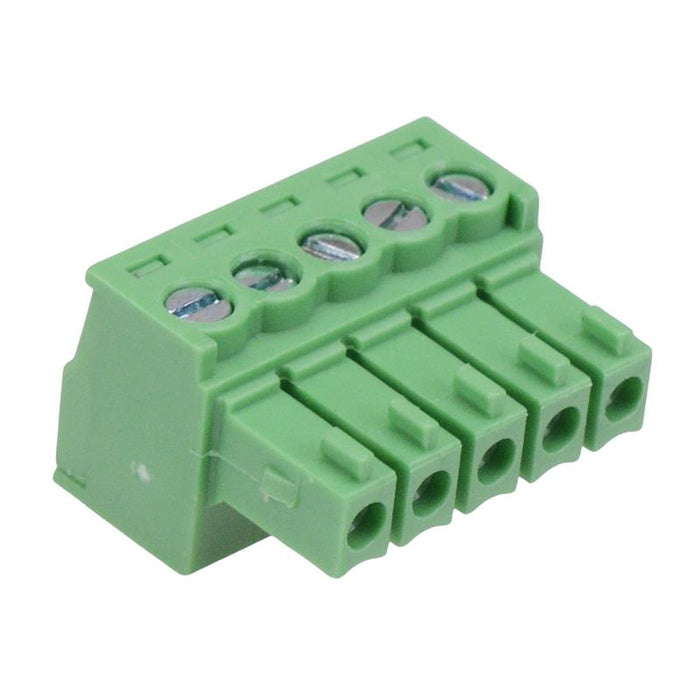

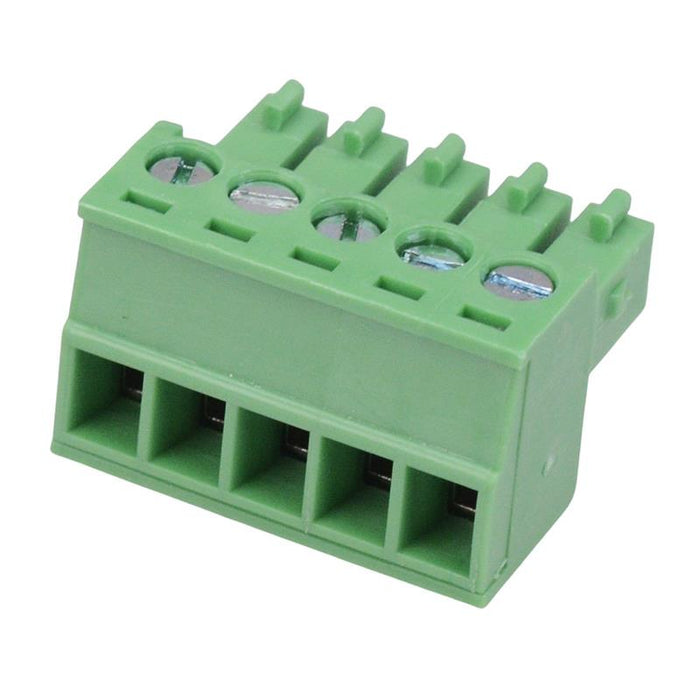

5 pole pluggable terminal block by Degson, featuring a 3.5mm pitch and right angle orientation. The terminal blocks are rated up to 8A, suitable for mating with 3.5mm open and closed style PCB headers.
5 pole 3.5mm pitch Right angle Material: PA66 Rating: 8A 300V Wire size: 28-16AWG
Specification
| Back Order Lead Time | 150 Days |
| Contact Material | Copper Alloy |
| Current Rating | 8A |
| Housing Material | PA66 |
| MOQ | 1 |
| Mounting Type | Cable Mount |
| Number of Ways | 5 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 3.5mm |
| Termination Method | Screw |
| Voltage Rating | 300V |
| Wire Range | 28-16AWG |
