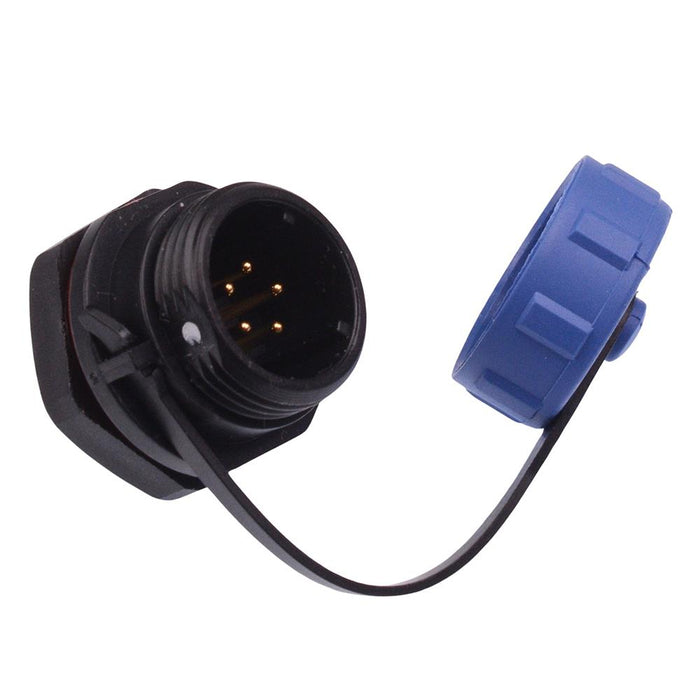

5 Pin Waterproof Male Socket Panel Mount Connector IP68

SKU 482015

MPN: 482015

Availability:
207 in stock
Original price £2.51 - Original price £2.51
Original price
£2.51 Inc VAT
£2.51 - £2.51
Current price £2.51 Inc VAT
5 way male socket featuring IP68 protection rating suitable for panel mount applications requiring a waterproof and rugged connector.

  • Outer cable diameter: 4.5-6mm
  • Protection level: IP68
  • Rating: 5A 180V
  • Solder termination
  • Rated for 500 mating cycles
  • Dimensions: 24.4 x 20mm (length x diameter)
  • Specification
    Back order lead time 30 Days
    Contact material Gold Plated Brass
    Current rating 5A
    Gender Male
    Housing material PA66
    Mounting type Panel Mount
    Number of ways 5
    Operating temperature -25°C to +80°C
    Protection level IP68
    Termination method Solder
    Thread size W13
    Voltage rating 180V
    Wire range 4-6.5mm Diameter
    Request a quote
