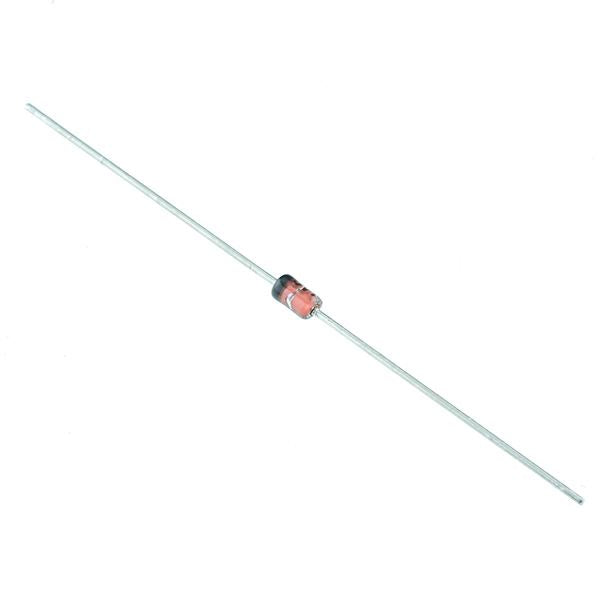

5.6V 1.3W Zener Diode DO-41 BZX85C5V6
SKU 552174
MPN: BZX85C5V6
Availability:
128 in stock
Original price
£0.12
-
Original price
£0.12
Original price
£0.12
£0.12
-
£0.12
Current price
£0.12
5.6V zener diode with a 1.3W power dissipation housed in a DO-41 package, suitable for thought hole applications including stabilising and clipping circuits with a high power.
Cathode identified by polarity band Sealed glass package Tolerance: ±5% BZX85C Taiwan Semiconductor series
Specification
| Back Order Lead Time | 5 Days |
| Body Dimensions | 4.5 x 2.4mm (Length x Diameter) |
| Lead Dimensions | 22 x 0.79mm (Length x Diameter) |
| Maximum Reverse Leakage | 1μA |
| Maximum Zener Impedance | 7Ω |
| MOQ | 10 |
| Operating Temperature | -65°C to 200°C |
| Package | DO-41 |
| Packaging | Tape |
| Power Dissipation | 1.3W |
| Test Current | 45mA |
| Zener Voltage | 5.6V |
| Zener Voltage Tolerance | ±5% |
