5-30V Voltmeter with Front Mounting Panel 12V/24V
SKU 491233
MPN: SE60786-2
Availability:
69 in stock
Original price
£6.79
-
Original price
£6.79
Original price
£6.79
£7.13
£7.13
-
£7.13
Current price
£7.13

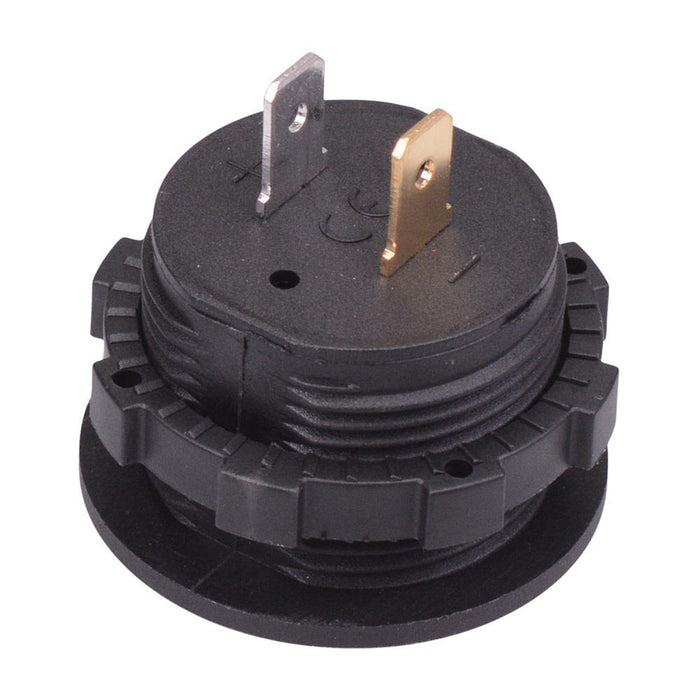

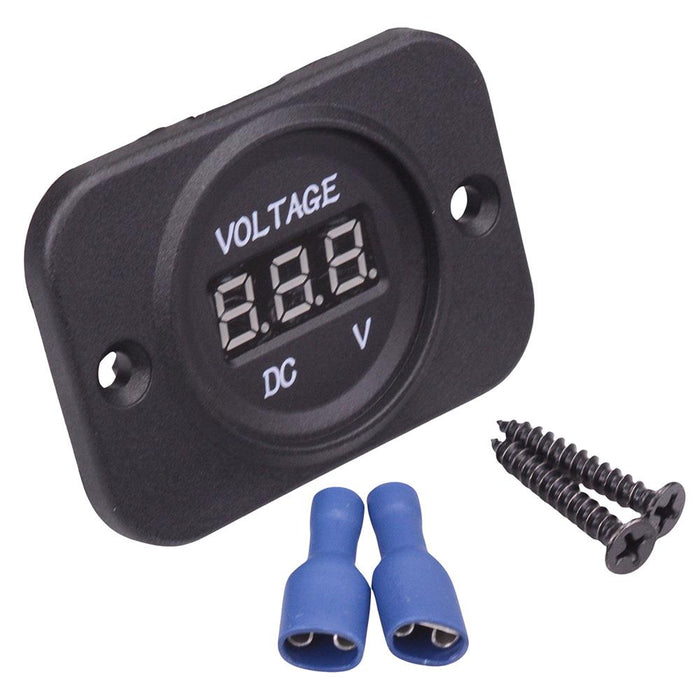

Panel mount voltmeter supplied with panel frame and mounting accessories. The meter requires a 12V/24VDC operating voltage and is capable of measuring between 5-30VDC. The meter features a red display and is suitable for mounting in front of the panel.
5V-30VDC range Red LED display Input voltage: 12/24VDC Reverse polarity protection Surge protection 6.3mm quick connect terminals Supplied with mounting frame, screws, crimps Mounting hole pitch: 48mm Screw hole diameter: 4mm Dimensions: 35.0 x 60.6 x 43.0mm (depth x width x height)
Specification
| Back Order Lead Time | 120 Days |
| LED Colour | Red |
| MOQ | 1 |
| Mounting Type | Panel Mount |
| Panel Cut Out | 29mm |
| Supply Voltage | 12V / 24VDC |
| Termination Method | Quick Connect |
| Voltage Test Range | 5-30VDC |
