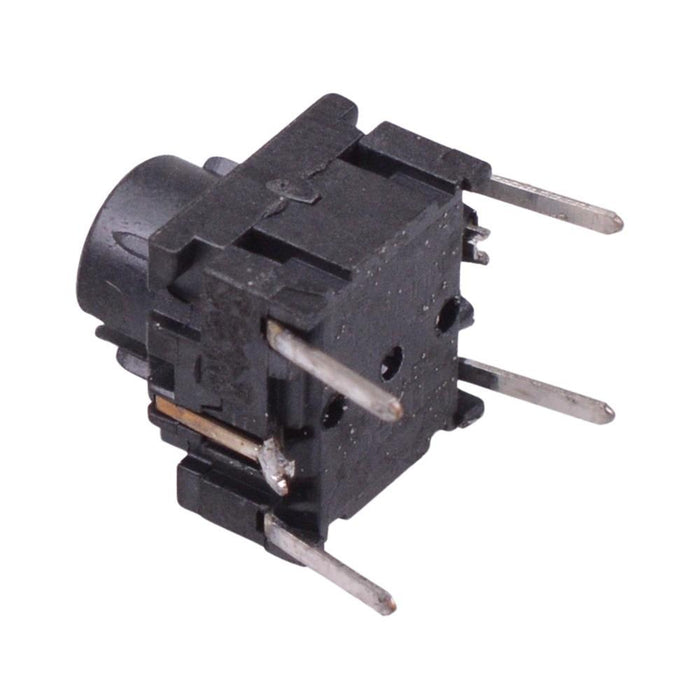

4FTH961 MEC White LED High Performance Tactile Switch PCB SPST-NO
by MEC
SKU 489822
MPN: 4FTH961
Availability:
478 in stock
Original price
£5.55
-
Original price
£5.55
Original price
£5.55
£5.55
£5.55
-
£5.55
Current price
£5.55
The 4FTH961 is a high performance illuminated tactile switch manufactured by MEC, featuring NO silver contacts and IP67 sealing. The switches are part of the illumec 4F series which utilises a snap-on cap retention system as the Multimec 3F series. The robust design of the switches make them suitable for a wide range of commerical and industrial applications.
10 x 10mm package Height: 10.4mm White LED LED forward voltage: 2.85V typical LED forward current: 15mA Momentary NO contacts IP67 protection level Through hole mounting Actuation force: 3.5N Terminal pitch: 10.16 x 7.62mm Compatible caps: 1D, 1E, 1F, 1GA, 1GC, 1K, 1KB, 1KC, 1N, 1Q, 1R, 1S, 1T, 1U, 1V, 1WA, 1WD, 1X and 1ZC
Specification
| Actuation | Momentary |
| Colour | White |
| Contact Configuration | SPST |
| Contact Material | Silver |
| Contact Rating | 50mA 24VDC |
| Current Rating | 50mA |
| Height | 10.4mm |
| Illumination Colour | White |
| Illumination Voltage | 2.85V |
| MOQ | 1 |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 3.5N |
| Operating Temperature | -30°C to +85°C |
| Pitch | 10.16 x 7.62mm |
| Product Series | illumec 4F |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 24VDC |
