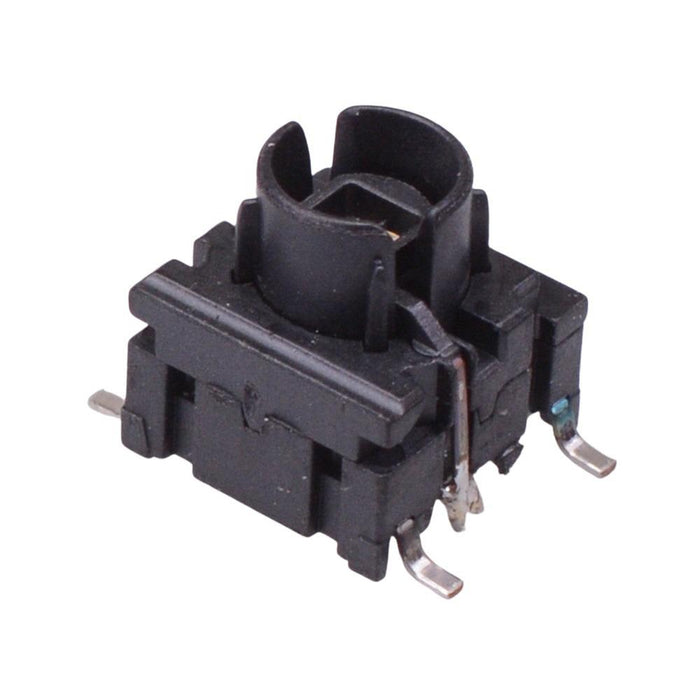

4FSH942 MEC Yellow LED High Performance Surface Mount Tactile Switch PCB SPST-NO
by MEC
SKU 489821
MPN: 4FSH942
Availability:
534 in stock
Original price
£3.85
-
Original price
£3.85
Original price
£3.85
Inc VAT
£3.85
-
£3.85
Current price
£3.85
Inc VAT

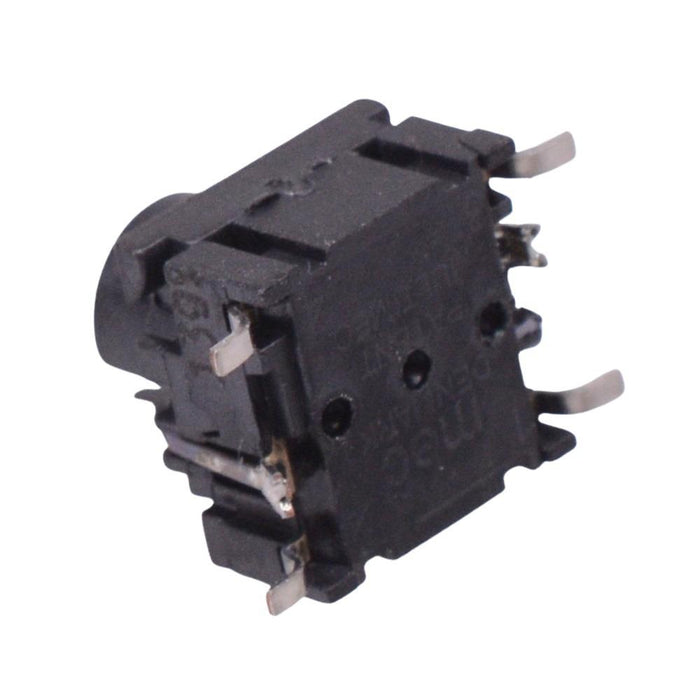

The 4FTH942 is a high performance illuminated tactile switch manufactured by MEC, featuring NO silver contacts and IP67 sealing. The switches are part of the illumec 4F series which utilises a snap-on cap retention system as the Multimec 3F series. The robust design of the switches make them suitable for a wide range of commerical and industrial applications.
10 x 10mm package Height: 10.4mm Yellow LED LED forward voltage: 1.75V typical LED forward current: 25mA Momentary NO contacts IP67 protection level Through hole mounting Actuation force: 3.5N Terminal pitch: 10.16 x 7.62mm Compatible caps: 1D, 1E, 1F, 1GA, 1GC, 1K, 1KB, 1KC, 1N, 1Q, 1R, 1S, 1T, 1U, 1V, 1WA, 1WD, 1X and 1ZC
Specification
| Actuation | Momentary |
| Colour | Yellow |
| Contact configuration | SPST |
| Contact material | Silver |
| Contact rating | 50mA 24VDC |
| Current rating | 50mA |
| Height | 10.4mm |
| Illumination colour | Yellow |
| Illumination voltage | 1.75V |
| Moq | 1 |
| Mounting style | PCB |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating force | 3.5N |
| Operating temperature | -30°C to +85°C |
| Pitch | 10.16 x 7.62mm |
| Product series | illumec 4F |
| Protection level | IP67 |
| Switch operation | Off-(On) |
| Terminal type | Through Hole |
| Voltage rating | 24VDC |
