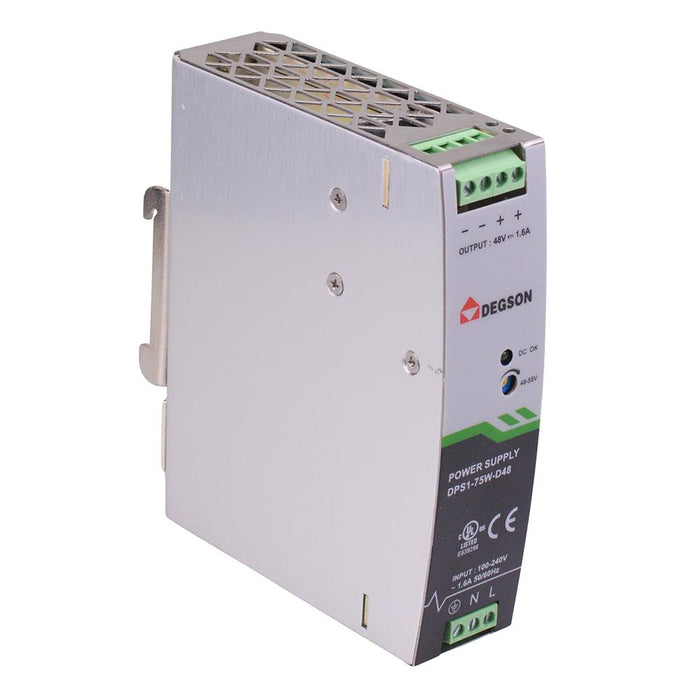

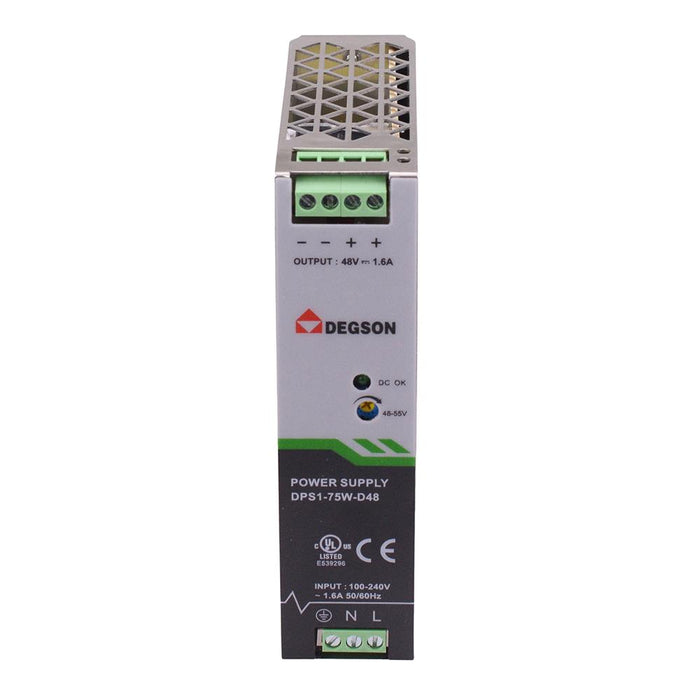

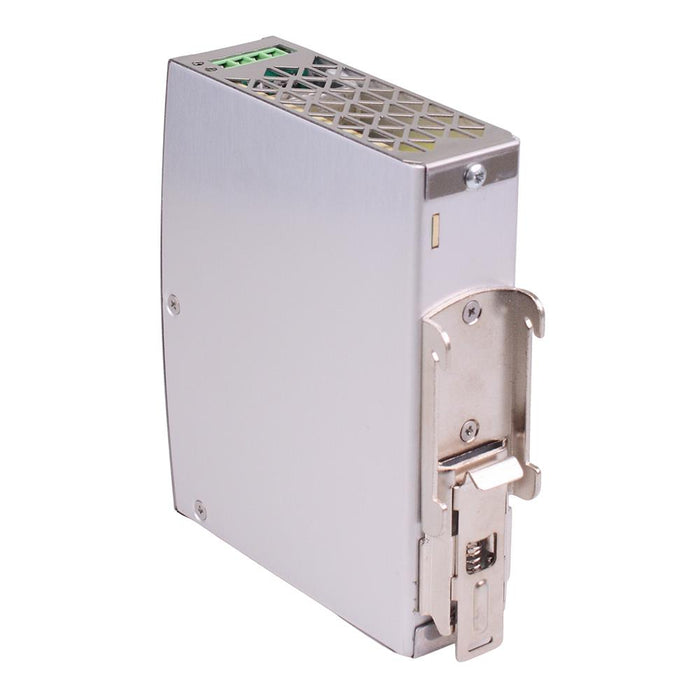

48VDC 75W DIN Rail Power Supply 230VAC
by Degson
SKU 491929
MPN: DPS1-75W-D48-02Z(H)
Availability:
20 in stock
Original price
£22.32
-
Original price
£22.32
Original price
£22.32
£23.44
£23.44
-
£23.44
Current price
£23.44
75W DIN rail power supply featuring 48VDC 1.6A output and universal input voltage. The power supply output voltage can be easily adjusted and connections are made via the terminal block. The power supply comes with short-circuit, over-voltage over-temperature and overload protection. Widely used for industrial automation, control systems, various other equipment and machines.
Input voltage: 90-264VAC, 127-370VDC Output voltage: 48VDC Adjustable range: 48-55VDC Output current: 1.6A Power: 76.8W Dimensions: 125 x 32 x 100.5mm (height x width x depth) Complies with UL508, BS/EN62368-1 3 year warranty
Specification
| Back Order Lead Time | 120 Days |
| Input Frequency | 47-63Hz |
| Input Voltage | 90-264VAC, 127-370VDC |
| Maximum Temperature | 85°C |
| MOQ | 1 |
| Output Connector | Terminal Block |
| Output Current | 1.6A |
| Output Voltage | 48VDC |
| Over Current Protection | Yes |
| Over Temperature Protection | Yes |
| Over Voltage Protection | Yes |
| Power Rating | 75W |
| Short Circuit Protection | Yes |
