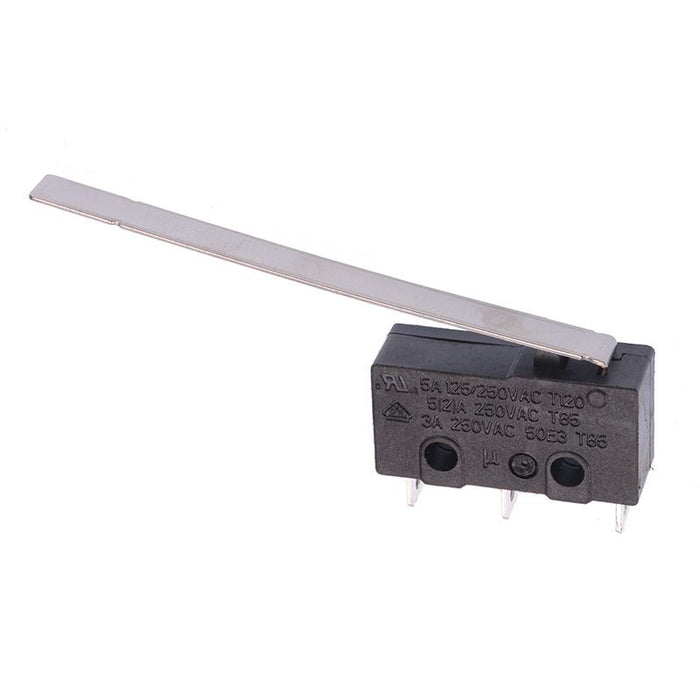

45mm Lever V4 Miniature Microswitch SPDT 5A

SKU 483502

MPN: 483502

Availability:
868 in stock
Original price £0.60 - Original price £0.60
Original price
£0.60 Inc VAT
£0.60 - £0.60
Current price £0.60 Inc VAT
Miniature microswitch featuring a 45mm lever actuator housed in a compact package capable of switching up to 5A. The switch features SPDT contacts and solder terminals making them useful for a wide range of applications including industrial and domestic.

  • 45mm lever actuator
  • Rating: 5A 250VAC
  • NO / NC contacts
  • Solder terminals
  • Body dimensions: 19.9 x 6.7 x 10.4mm (Length x Width x Height)
  • Specification
    Back order lead time 45 Days
    Contact configuration SPDT
    Contact rating 5A 250VAC
    Current rating 5A
    Electrical life 50,000 Cycles
    Number of positions 2
    Operating force 4.5N Max
    Operating temperature -25°C to +85°C
    Terminal type Through Hole
    Voltage rating 250VAC
