4 Way Waterproof Sealed On-Off Rocker Switch Panel 12-24VDC IP66
by SCI
SKU 491428
MPN: PR18-H4A-242A32AA
Availability:
Only 5 left!
Original price
£13.44
-
Original price
£13.44
Original price
£13.44
£13.44
-
£13.44
Current price
£13.44

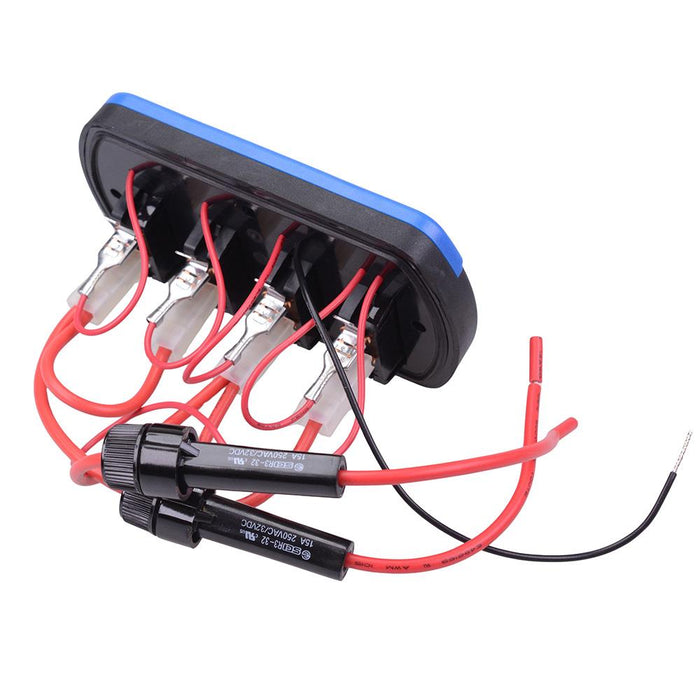

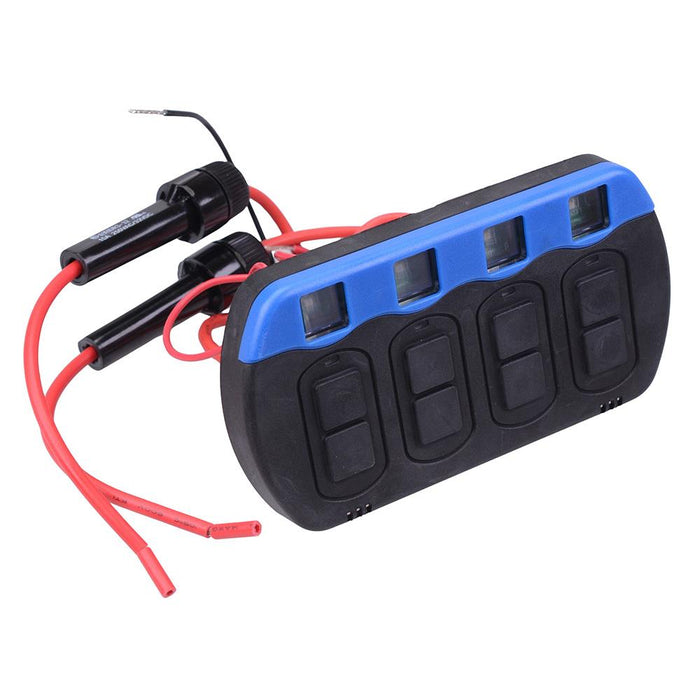

The PR18-H4A-242A32AA is a sealed rocker switch panel featuring 4 On/Off switches with LED indicators when the switch is in the 'On' position. The panel is sealed to IP66 featuring a rubber mounting gasket and integral cover seal. The cover includes a clear plastic membrane with rubber over-mould allowing the switch to be easily operated while providing a clear window for label backlighting. The panel is suitable for 12V and 24V applications including automotive and marine.
4 way On/Off rocker switches Red switch status LED indicators Protection level: IP66 Voltage rating: 12-24VDC Output rating: 10A max per circuit, 15A per for 2 circuits Twin 5x20mm fuse holders with 15A fuse 6.3mm piggyback terminals Mounting hole pitch: 96 x 40mm Dimensions: 118.5 x 62.6mm (width x height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Contact Configuration | SPST |
| Contact Rating | 10A 12/24VDC |
| Current Rating | 10A |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12/24VDC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +60°C |
| Protection Level | IP66 |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
