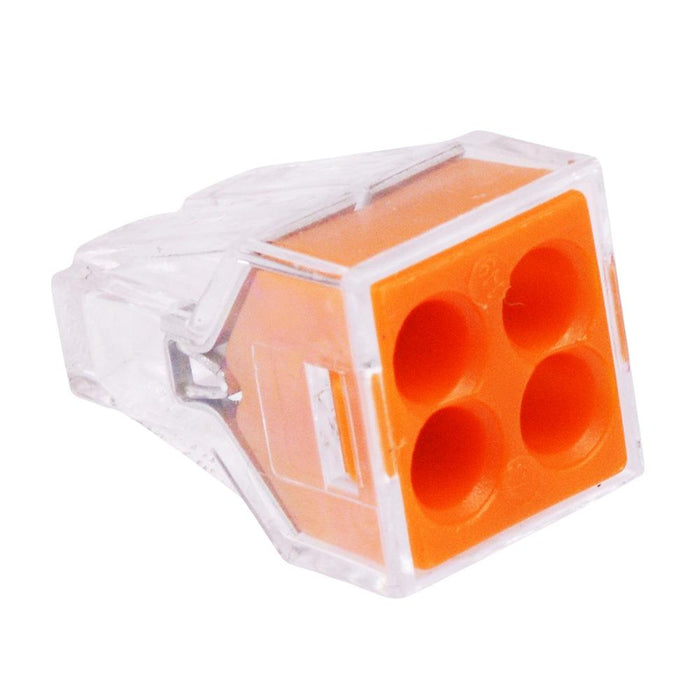

4-Way Wago 773-104 Push Connectors 2.5mm²

by Wago
SKU 356085

MPN: 773-104

Availability:
1079 in stock
Original price £0.28 - Original price £0.28
Original price
£0.28
£0.28 - £0.28
Current price £0.28
The WAGO 773-104 is a 4 way push wire connector for junction boxes providing an immediate solution for use with solid conductors with cross sections up 2.5mm². The transparent housing also enables the electrician or installer to see at a glance whether all the conductors have been fully inserted and properly connected.

  • Transparent housing
  • Push wire technology
  • Solid conductor wire size: 0.75 to 2.5mm²
  • Stranded conductor wire size: 1.5 to 2.5mm²
  • Wire strip length: 12mm
  • Maximum current: 24A
  • Maximum voltage: 400V
  • Specification
    Back Order Lead Time 5 Days
    Colour Orange
    Contact Material Copper
    Current Rating 24A
    Housing Material PC
    Mounting Type Cable Mount
    Number of Ways 4
    Termination Method Push In
    Voltage Rating 400V
    Wire Range 2.5mm² Maximum
