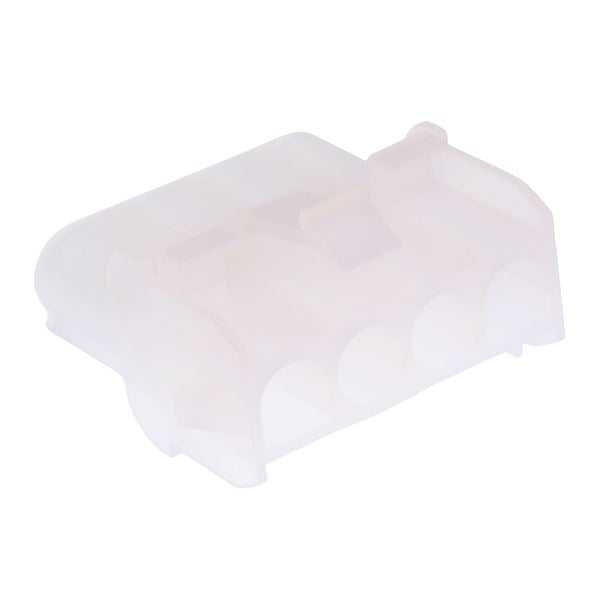

4 Way 6.35mm Female Mate N Lock Connector Housing

SKU 484716

MPN: 484716

Availability:
454 in stock
Original price £0.27 - Original price £0.27
Original price
£0.27 Inc VAT
£0.27 - £0.27
Current price £0.27 Inc VAT
Single row 4 way female mate n lock housing featuring 6.35mm pitch suitable for mating with a male housing. The connector features a lock to ensure secure retention when mated, suitable as a replacement for Molex MLX connectors.

  • 6.35mm pitch
  • Nylon 66 housing
  • Rated Current: 10A
  • Rated Voltage: 300V
  • Wire range: 14-20AWG
  • Specification
    Back order lead time 45 Days
    Contact material Tin Plated Brass
    Current rating 10A
    Housing material PA66
    Moq 5
    Mounting type Cable Mount
    Number of ways 4
    Operating temperature -25°C to +85°C
    Pitch 6.35mm
    Termination method Crimp
    Voltage rating 300VAC
    Wire range 20-14AWG
    Request a quote
