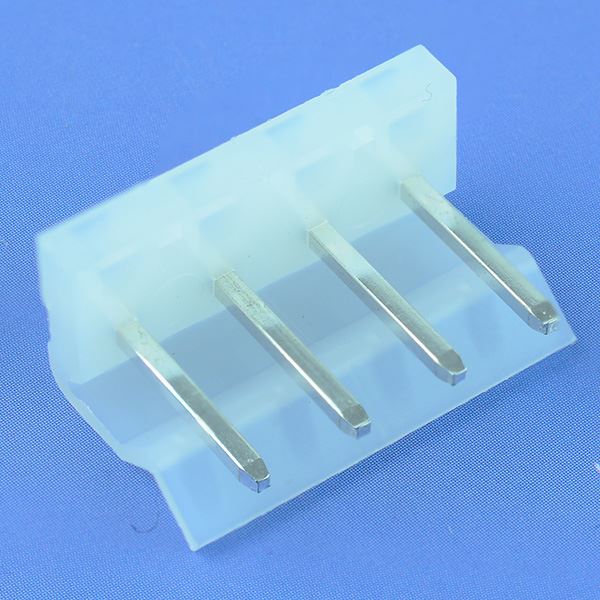

4 Way 5.08mm PCB Male Header
SKU 481132
MPN: 481132
Availability:
656 in stock
Original price
£0.20
-
Original price
£0.20
Original price
£0.20
£0.20
£0.20
-
£0.20
Current price
£0.20
Single row 4 way pin header featuring 5.08mm pitch suitable for connecting wires to PCBs. The headers feature a friction lock to ensure secure retention when mated, suitable as a replacement for Molex 5058.
5.08mm pitch Solder termination PA66 housing Rated Current: 5A Rated Voltage: 250V Wire range: 18-24AWG
Specification
| Back Order Lead Time | 45 Days |
| Contact Material | Tin Plated Brass |
| Current Rating | 5A |
| Housing Material | PA66 |
| MOQ | 5 |
| Mounting Type | PCB Mount |
| Number of Ways | 4 |
| Operating Temperature | -25°C to +85°C |
| Pitch | 5.08mm |
| Termination Method | Solder |
| Voltage Rating | 250VAC |
| Wire Range | 18-24AWG |
