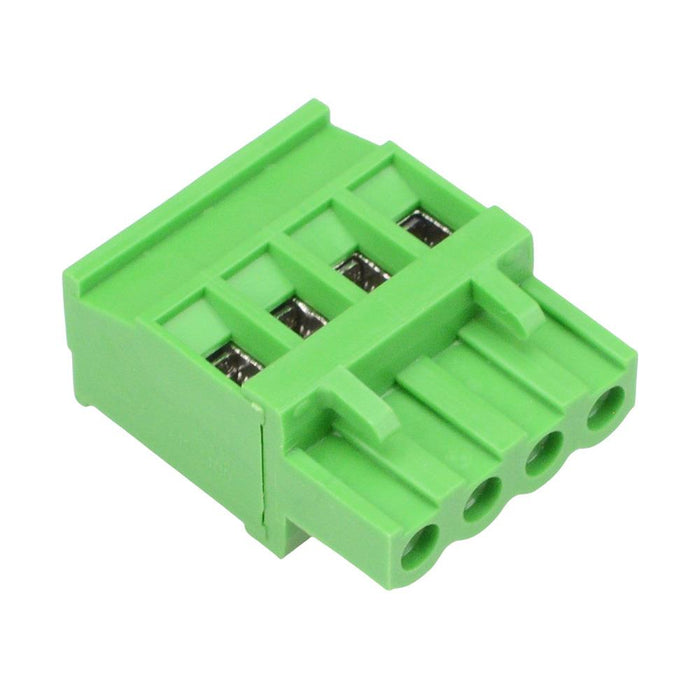

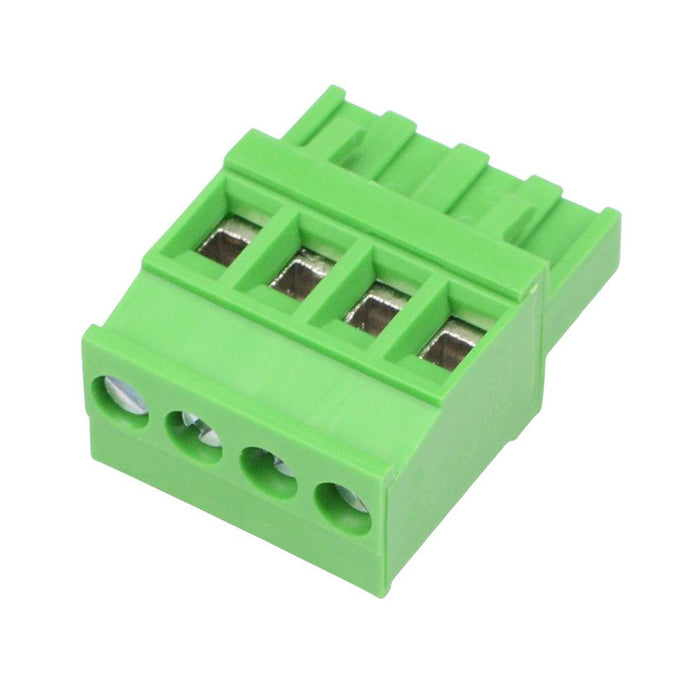

4-Way 5.00mm Vertical Pluggable Terminal Block Green 15A 300V
by APEM
SKU 492460
MPN: AK1100/04-5,00-GREEN
Availability:
25 in stock
Original price
£0.78
-
Original price
£0.78
Original price
£0.78
£0.78
-
£0.78
Current price
£0.78
4 pole pluggable terminal block manufactured by PTR HARTMANN, featuring a 5mm pitch and vertical wire entry. The terminal blocks are rated up to 15A, making them suitable for a wide range of PCB applications.
4 pole 5.00mm pitch Vertical wire entry Material: PA66 Rating: 15A 300V Wire size: 28-10AWG
Specification
| Back Order Lead Time | 120 Days |
| Colour | Green |
| Contact Material | Brass |
| Current Rating | 15A |
| Housing Material | PA66 |
| MOQ | 1 |
| Mounting Type | Cable Mount |
| Number of Ways | 4 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.00mm |
| Termination Method | Screw |
| Voltage Rating | 300V |
| Wire Range | 28-10AWG |
