4-Way 5.00mm Vertical Pluggable Terminal Block 15A 300V
by Degson
SKU 488754
MPN: 2EDGKA-5.00-04P14
Availability:
100 in stock
Original price
£0.66
-
Original price
£0.66
Original price
£0.66
£0.69
£0.69
-
£0.69
Current price
£0.69

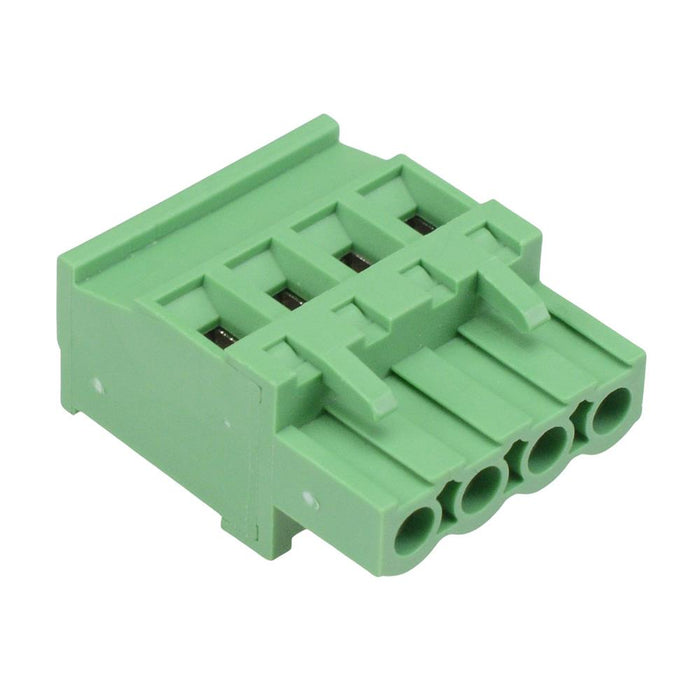

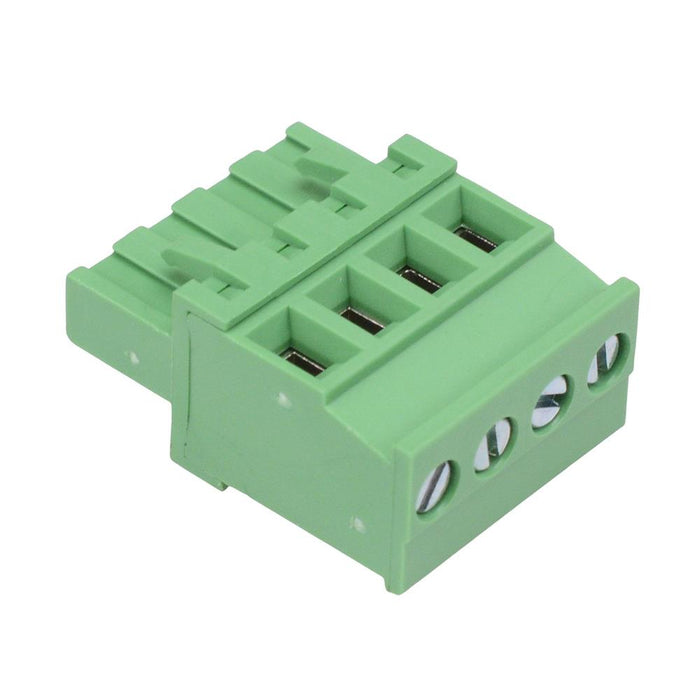

4 pole pluggable terminal block by Degson, featuring a 5.00mm pitch and vertical orientation. The terminal blocks are rated up to 15A, suitable for mating with 5mm open and closed style PCB headers.
4 pole 5.00mm pitch Vertical orientation Material: PA66 Rating: 15A 300V Wire size: 28-12AWG
Specification
| Back Order Lead Time | 150 Days |
| Contact Material | Copper Alloy |
| Current Rating | 15A |
| Housing Material | PA66 |
| MOQ | 1 |
| Mounting Type | Cable Mount |
| Number of Ways | 4 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.00mm |
| Termination Method | Screw |
| Voltage Rating | 300V |
| Wire Range | 28-12AWG |
