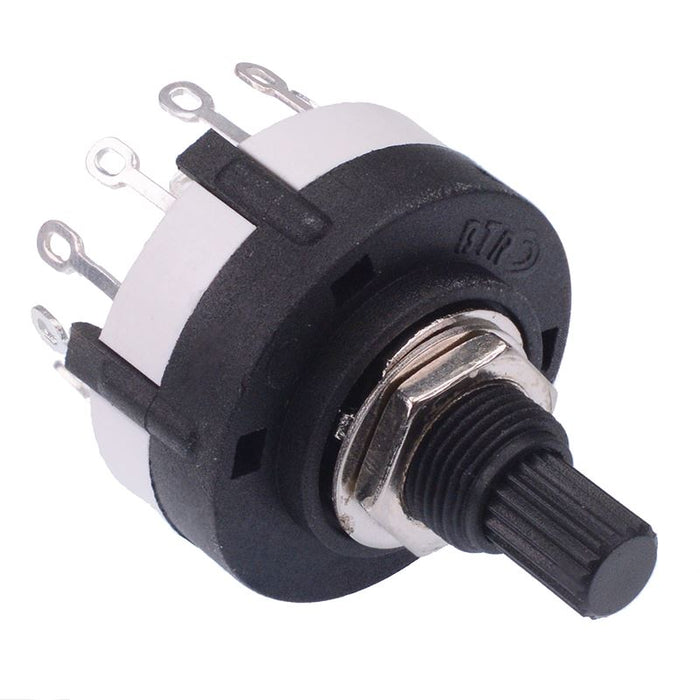

4 Pole 3 Way Rotary Switch Splined Shaft Solder Terminals
SKU 486499
MPN: 486499
Availability:
202 in stock
Original price
£1.97
-
Original price
£1.97
Original price
£1.97
£1.97
-
£1.97
Current price
£1.97
4 pole break before make rotary switch featuring 3 ways and 18T splined 6mm shaft. The switch features solder terminals and are suitable for a wide range of panel mount applications.
4 pole 3 way 18T splined shaft Solder terminals Break before make 7.5mm shaft length Complete with nut, washer and position stop Dimensions: 36.5 x 26mm (Height x Diameter)
Specification
| Back Order Lead Time | 30 Days |
| Contact Configuration | 4P3T |
| Contact Rating | 2.5A 125VAC, 0.35A 125VDC |
| Current Rating | 2.5A @ 125VAC |
| Electrical Life | 15,000 Cycles |
| Material | Nylon |
| Mounting Style | Panel |
| Number of Poles | 4 |
| Number of Ways | 3 |
| Operating Force | 400gf |
| Operating Temperature | -30°C to +85°C |
| Panel Cut Out | 10mm |
| Terminal Type | Solder |
| Voltage Rating | 125VAC |
